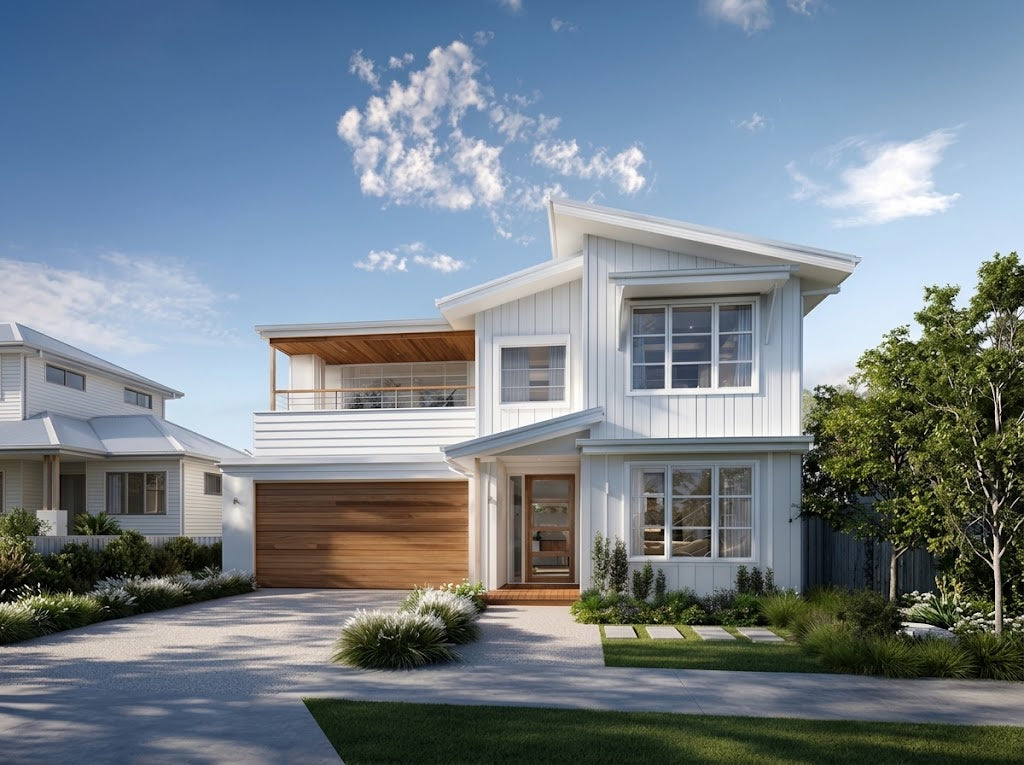

MC4002 Modern Coastal
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏠 KEY SPECS
408.3 m² 🛏️ 4 Bedrooms 🛁 3.5 Bathrooms 🚗 2 Car Garage ⬆️ 2 Storey
✨ DESCRIPTION
A standout modern coastal home design created for those who want more than the ordinary.
With visually stunning street appeal, clever multi-purpose spaces, and beautifully connected living areas, this layout delivers both wow-factor and family practicality in perfect balance.
🌿 FEATURES YOU’LL LOVE
-
🏡 Open-plan kitchen, dining & living with added modern design features such as study nook, wine fridge and stunning two storey void over the living room creating incredible high ceilings
-
🍳 Contemporary kitchen with large island bench & walk-in pantry + cute study nook
-
🌤️ Rear outdoor entertainment area seamlessly connecting dining and living rooms
-
🏠 Ground-floor separate guest suite / internal granny flat - perfect for teenagers, guests or multi-generational living
-
🎬 Clever storage and display shelving throughout the home
-
🧺 Upstairs study nook - perfect for kids homework
-
🚻 Ground-floor powder room
-
🛏️ Two bedrooms with jack and jill ensuite
-
🛏️ Master suite featuring:
-
Large walk-in robe + separate built in robe
-
Private ensuite with bath for a touch of luxury
-
-
🧒 First-floor kids retreat with balcony plus separate study nook
-
🛁 Laundry chute
-
📦 Stunning two storey voids overlooking the entrance of the home and downstairs living room
💡 WHY THIS DESIGN STANDS OUT
✔️ Distinctive modern coastal street appeal for standout presence
✔️ Flexible multi-purpose zones for family adaptability
✔️ Multiple storage options and display shelving
✔️ Indoor-outdoor connection through rear alfresco and open-plan living
🧭 IDEAL FOR
Families looking for:
-
A modern 4-bedroom double-storey home with flexible spaces
-
A design that blends character and functionality
-
A home with butler’s pantry, kids retreat & multiple living areas
-
A unique floor plan that stands out in any streetscape
- Visually stunning two storey void over the downstairs living
- Separate internal granny flat
Floor Plan
Ground Floor
First Floor
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
