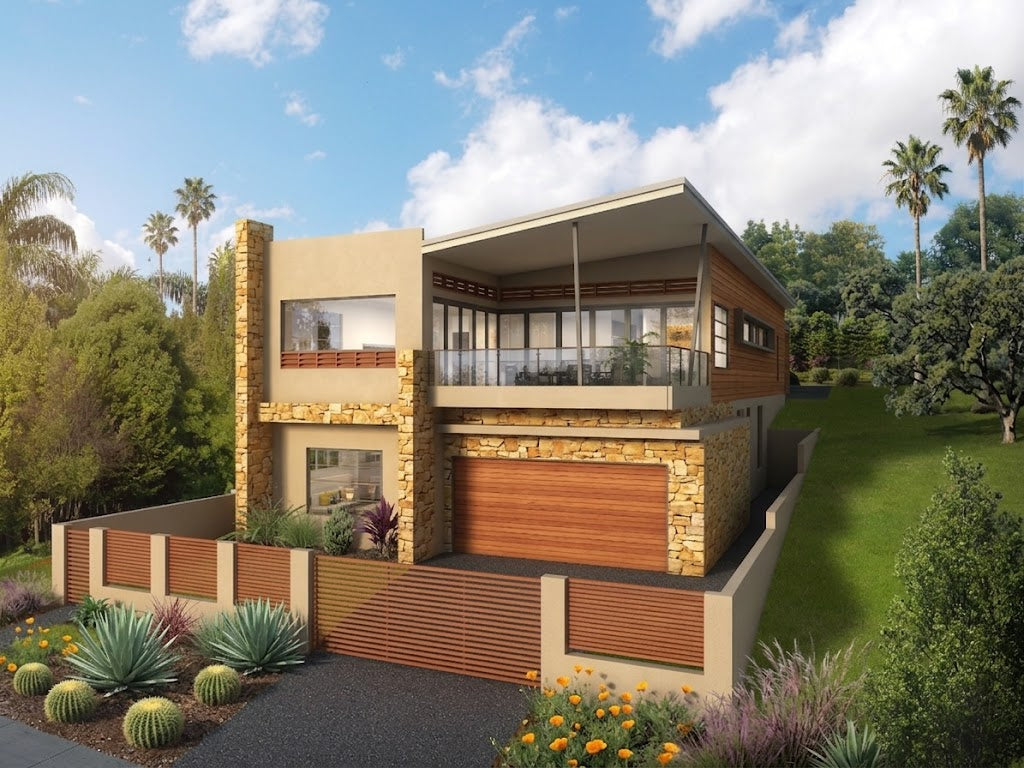

M5015 Modern Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏠 KEY SPECS
495.3 m² 🛏️ 5 Bedrooms 🛁 3 Bathrooms 🚗 2 Car Garage ⬆️ 2 Storey
✨ DESCRIPTION
This stunning modern family home delivers scale, sophistication, and functionality in perfect harmony.
Designed for large families who love open spaces and contemporary living, it combines multiple entertainment areas, private retreats, and beautiful voided spaces for an airy, light-filled feel.
🌿 FEATURES YOU’LL LOVE
-
🏡 Expansive open-plan kitchen, dining & living area ideal for entertaining
-
🍳 Walk-in pantry adjoining a large modern kitchen
-
🛏️ King-size master suite with large walk-in robe & luxury ensuite
-
🛏️ Four additional bedrooms with built-in robes
-
🧒 Kids retreat with balcony access
-
🎬 Separate media room for family movie nights
-
💻 Study nook for remote work or study
-
🌅 Large deck accessible from the kids retreat & master bedroom
-
🌤️ Outdoor alfresco for entertaining
-
🛁 Main bathroom on each level for convenience
-
🧼 Laundry with functional layout
-
🌿 Garden storage room with direct outdoor access
-
🪜 Kitchen & living areas surrounding a central void for abundant natural light
-
⚖️ Split-level ground floor adding interest and flow
💡 WHY THIS DESIGN STANDS OUT
✔️ Perfect for large families or multi-generational living
✔️ Multiple living & entertaining areas across two levels
✔️ Impressive void design creating light-filled interiors
✔️ Functional flow with bathrooms on both levels
✔️ Outdoor spaces designed for lifestyle and connection
🧭 IDEAL FOR
Families wanting:
-
A luxury 5-bedroom double-storey home with space to grow
-
A modern family home featuring open-plan living & voids
-
A split-level design with decks and alfresco entertaining
-
A large-scale house plan for premium lots
Floor Plan
Ground Floor
First Floor
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
