T4019-B Traditional Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏡 KEY SPECS
269.2m² 🛏️ 4 Bedrooms 🛁 2.5 Bathrooms 🚗 2 Car Carport 🏠 2 Storey
🏠 DESCRIPTION

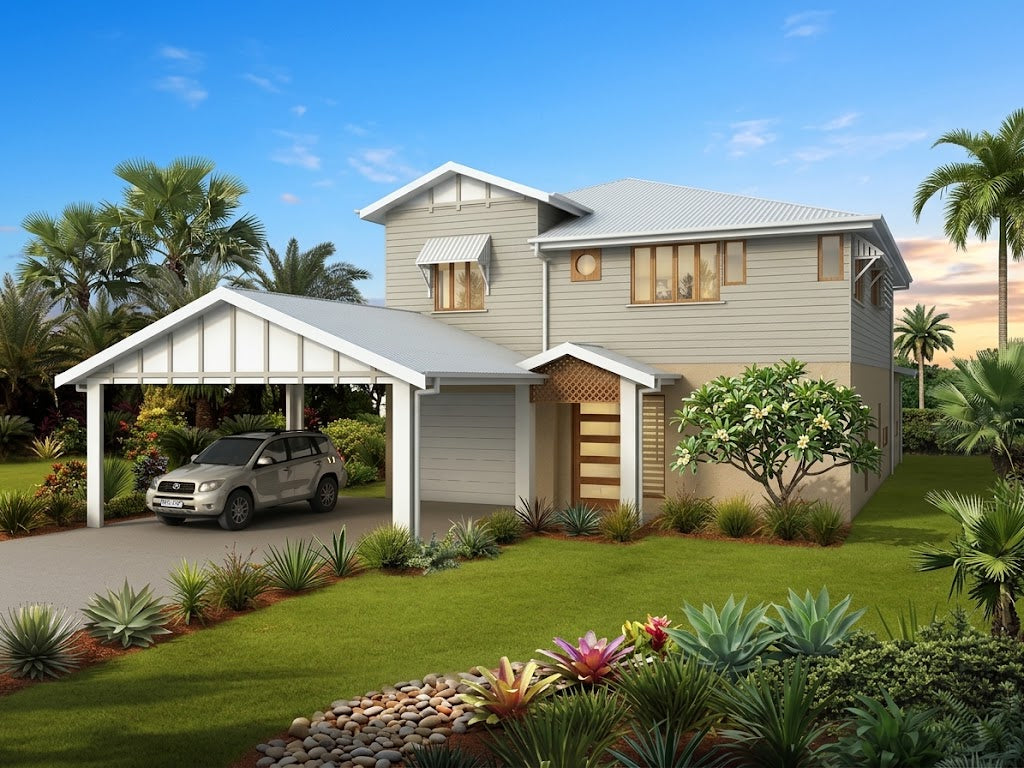

This traditional two-storey family home design offers a smart and functional layout with all the essentials for comfortable family living. With the master suite conveniently located on the ground floor and multiple living zones throughout, it’s ideal for families who value space, flow and flexibility.
✨ GROUND FLOOR FEATURES
-
👑 Master bedroom with walk-in wardrobe and private ensuite
-
💼 Dedicated study perfect for working from home or study use
-
🧺 Laundry with external access
-
🚻 Powder room for guests
-
🍽️ Open-plan kitchen, dining and living area designed for natural light and everyday family connection
-
👩🍳 Modern kitchen with island bench and walk-in pantry
-
🌤️ Outdoor alfresco extending from the living area – perfect for entertaining
-
🚗 Two-car carport providing easy and convenient parking
🛌 FIRST FLOOR FEATURES
-
🛏️ Three bedrooms, each with built-in wardrobes
-
🛀 Main family bathroom with modern finishes
-
🧺 Walk-in linen cupboard providing extra storage
-
🧸 Large kids’ retreat / second living room ideal for play or relaxation
💡 HIGHLIGHTS
-
Master suite on the ground floor for privacy and convenience
-
Open-plan living connecting to the outdoor alfresco
-
Multiple living zones for flexible family living
-
Functional and efficient layout suited to various block sizes
-
Perfect for modern family lifestyles in suburban or regional areas
Floor Plan
Ground Floor

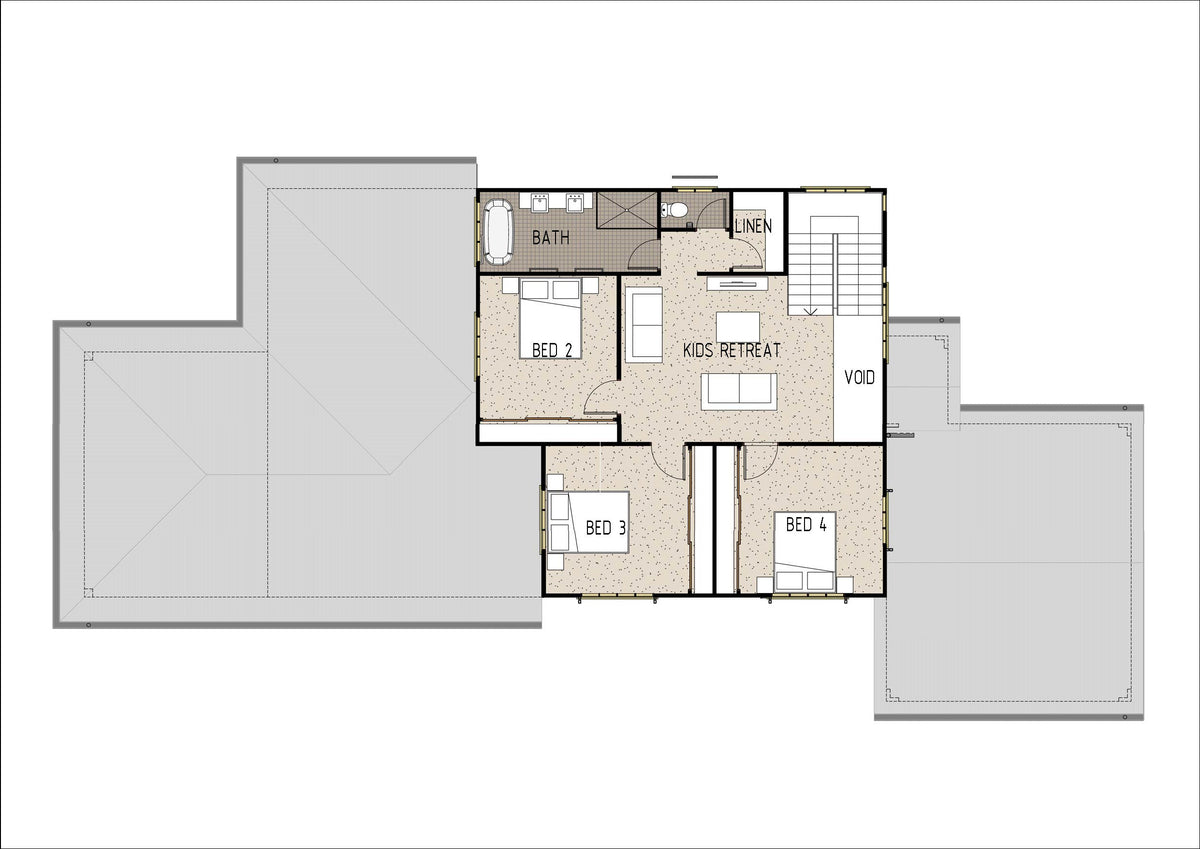

First Floor
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
