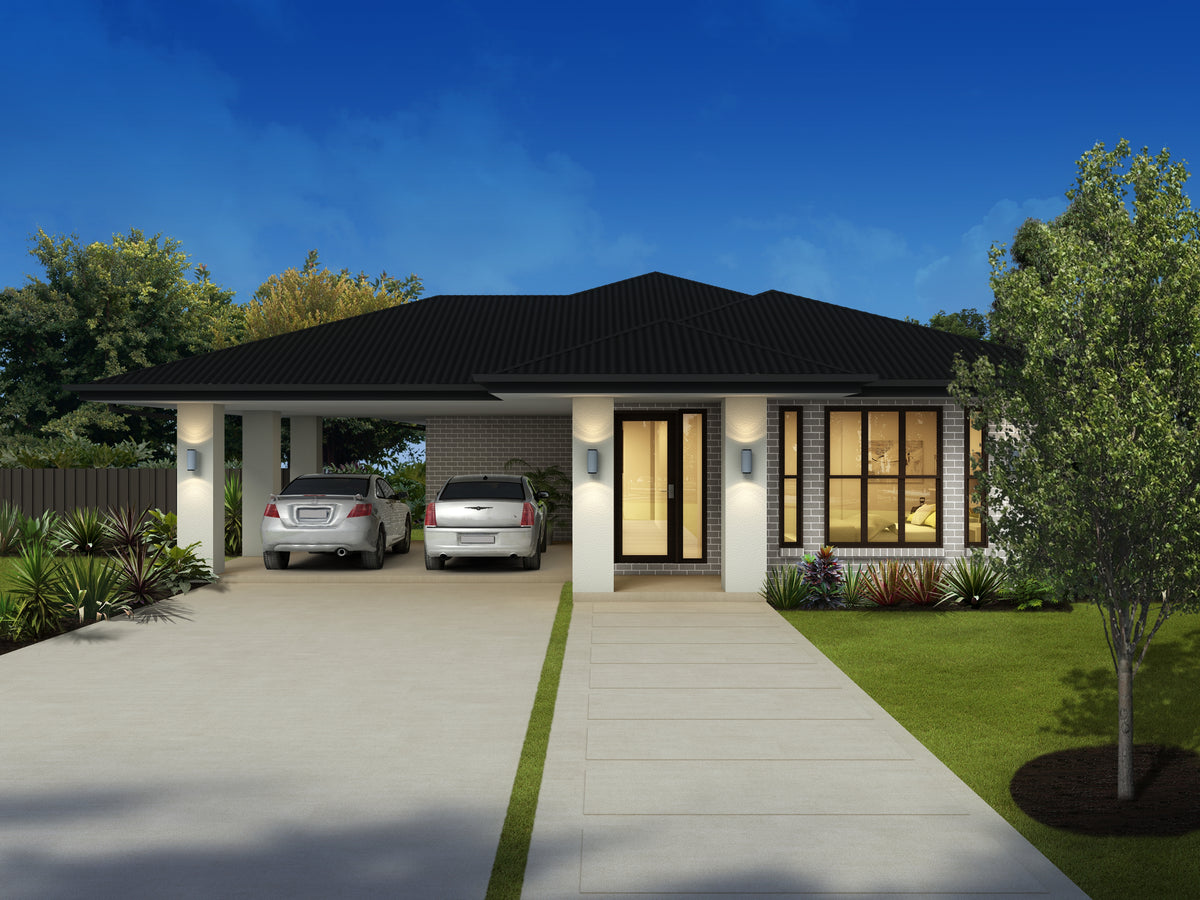

T4022 Traditional Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏡 KEY SPECS
221.5m² 🛏️ 4 Bedrooms 🛁 2 Bathrooms 🚗 2 Car Carport 🏠 1 Storey
🏠 DESCRIPTION
This modern single-storey family home offers a practical and inviting layout ideal for family living. With four bedrooms, open-plan living and a seamless flow to the outdoors, this home delivers space, comfort, and functionality on one level.
✨ FEATURES
-
🛏️ Four bedrooms – three with built-in wardrobes, plus a master suite featuring a walk-in robe and private ensuite
-
🍽️ Open-plan kitchen, dining and living area promoting connected family living
-
👩🍳 Modern kitchen with large built-in pantry for convenience and storage
-
🧺 Separate laundry with easy access to the outdoors
-
🛀 Main family bathroom with quality finishes
-
💻 Small study nook for work or homework space
-
🌤️ Outdoor alfresco area ideal for entertaining or relaxing
-
🚗 Two-car carport providing sheltered parking
💡 HIGHLIGHTS
-
Smart single-level design with efficient use of space
-
Open-plan living for a modern family lifestyle
-
Functional flow between indoor and outdoor spaces
-
Perfect for smaller suburban or regional blocks
Floor Plan
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
