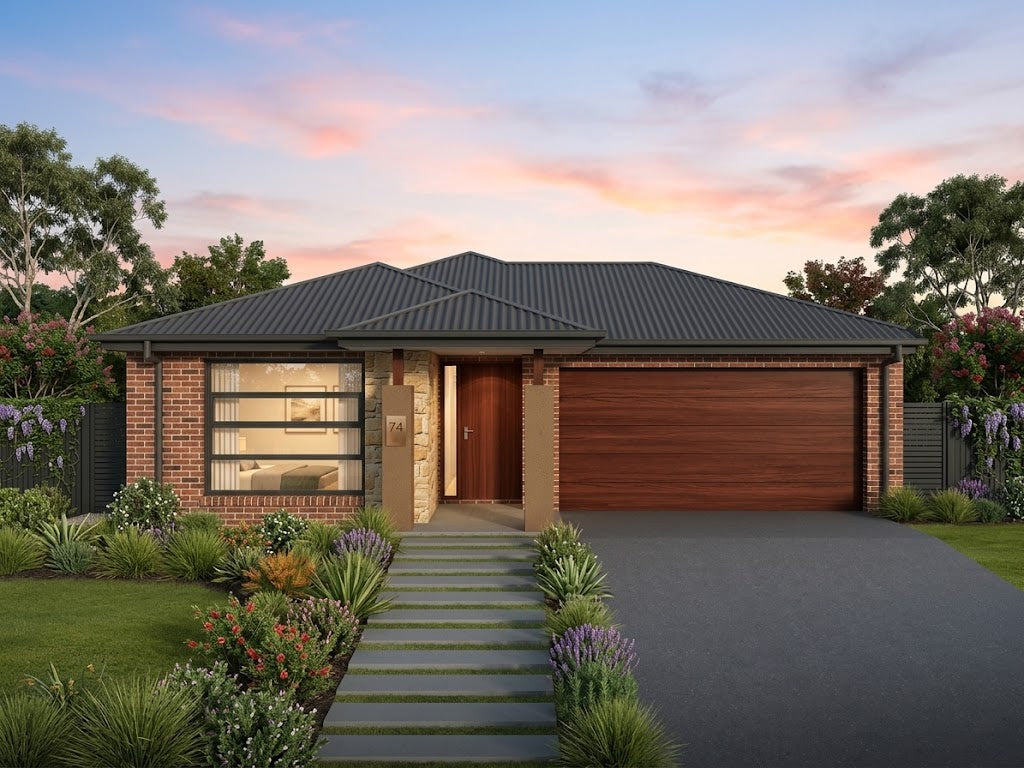

T4028-B Traditional Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏡 KEY SPECS
221.7m² 🛏️ 4 Bedrooms 🛁 2 Bathrooms 🚗 2 Car Garage 🏠 1 Storey
🏠 DESCRIPTION
This modern single-storey home is an expanded version of our T4028-A design, offering more space, comfort and flexibility for family living. With larger rooms and added features throughout, this design delivers exceptional practicality while maintaining a simple and functional layout.
✨ FEATURES
-
👑 Master bedroom positioned at the front of the home, featuring a walk-in robe and private ensuite (now larger than the original design)
-
🛏️ Three additional bedrooms with built-in wardrobes
-
🛀 Full-size family bathroom with modern finishes
-
🧺 Separate laundry with external access
-
🎬 Dedicated family/media room that can be fully closed off from the main living area
-
🍽️ Open-plan kitchen, living and dining area for connected family living
-
👩🍳 Upgraded kitchen featuring a much larger walk-in pantry for storage and convenience
-
🌤️ Outdoor alfresco extending from the living area – perfect for relaxed entertaining
-
🚗 Double garage with internal access
💡 HIGHLIGHTS
-
Larger version of the T4028-A design offering more living space
-
Separate media room for family entertainment or quiet retreat
-
Enhanced kitchen layout with expanded pantry
-
Functional single-level design suited to most suburban lots
-
Perfect for families wanting extra space without complexity
Floor Plan
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
