- VENDOR: Australian House Design Group

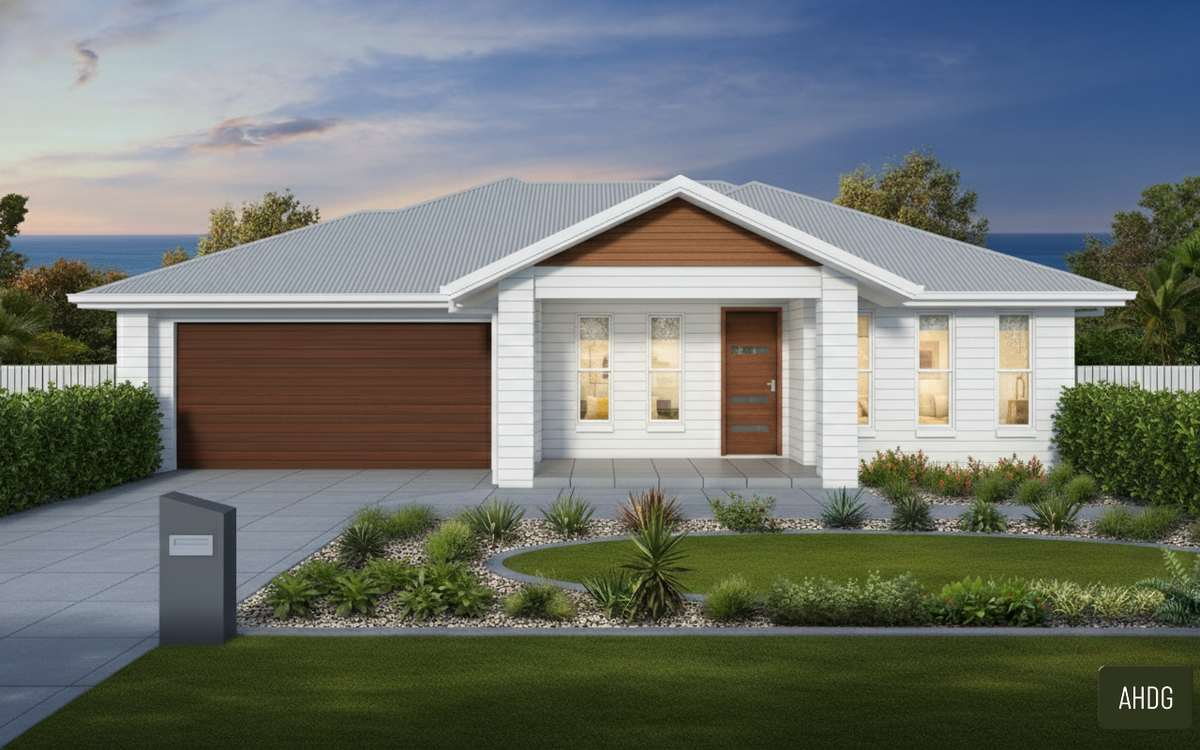

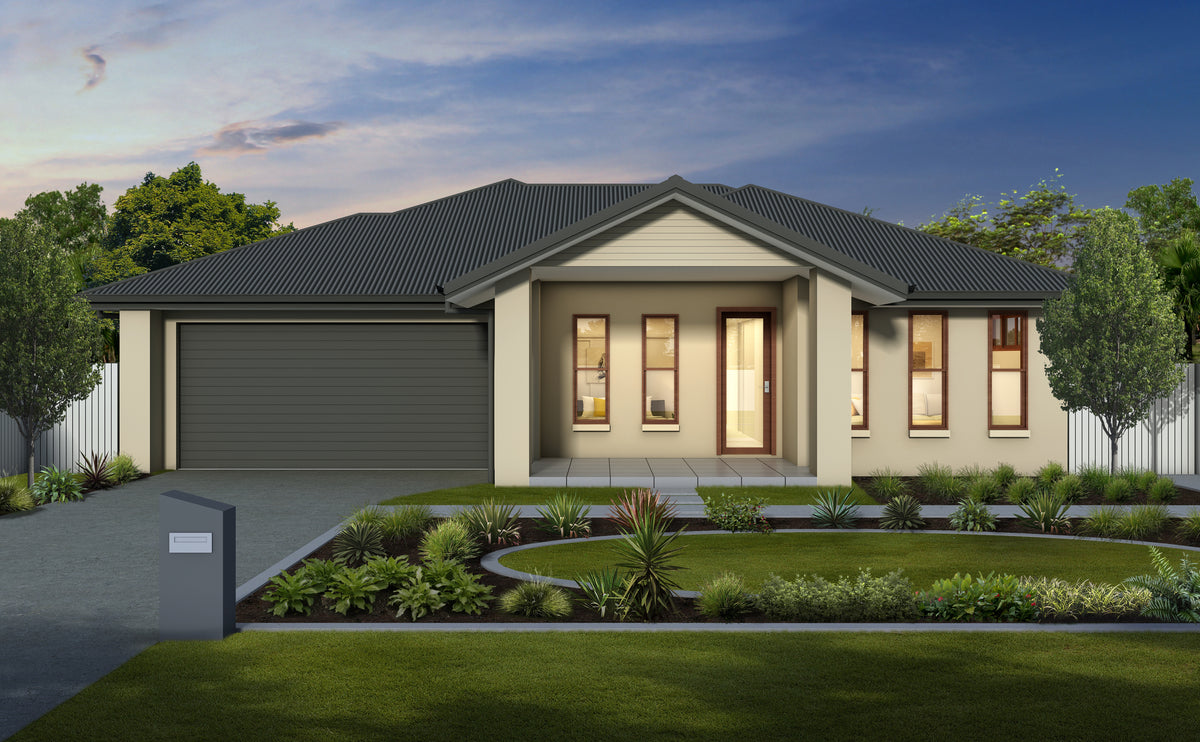

T4046-B Traditional Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏡 KEY SPECS
249.2m² 🛏️ 4 Bedrooms 🛁 2 Bathrooms 🚗 2 Car Garage 🏠 1 Storey
🏠 DESCRIPTION
This modern single-storey family home offers an open, functional layout designed for family comfort and flexibility. With multiple living zones, a central kitchen and a dedicated study, this design combines everyday practicality with stylish modern living.
✨ FEATURES
-
🍽️ Open-plan kitchen, dining and living area for connected family living
-
👩🍳 Modern kitchen featuring an island bench and walk-in pantry for ample storage
-
🛏️ Three bedrooms with built-in wardrobes surrounding a kids’ activity room
-
🧒 Kids’ activity room offering extra space for play, study or relaxation
-
👑 Master bedroom with walk-in wardrobe and private ensuite
-
💻 Dedicated study ideal for home office or quiet workspace
-
🛀 Main family bathroom with modern fixtures
-
🧺 Laundry with external access
-
🌤️ Outdoor alfresco featuring a built-in BBQ area – perfect for entertaining
-
🚗 Double garage with internal entry
💡 HIGHLIGHTS
-
Family-focused layout with clearly defined living zones
-
Central kitchen hub perfect for entertaining
-
Kids’ activity room and private study offering flexibility for all family members
-
Outdoor alfresco with built-in BBQ enhancing indoor–outdoor flow
-
Ideal for modern suburban or acreage blocks
Floor Plan
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
