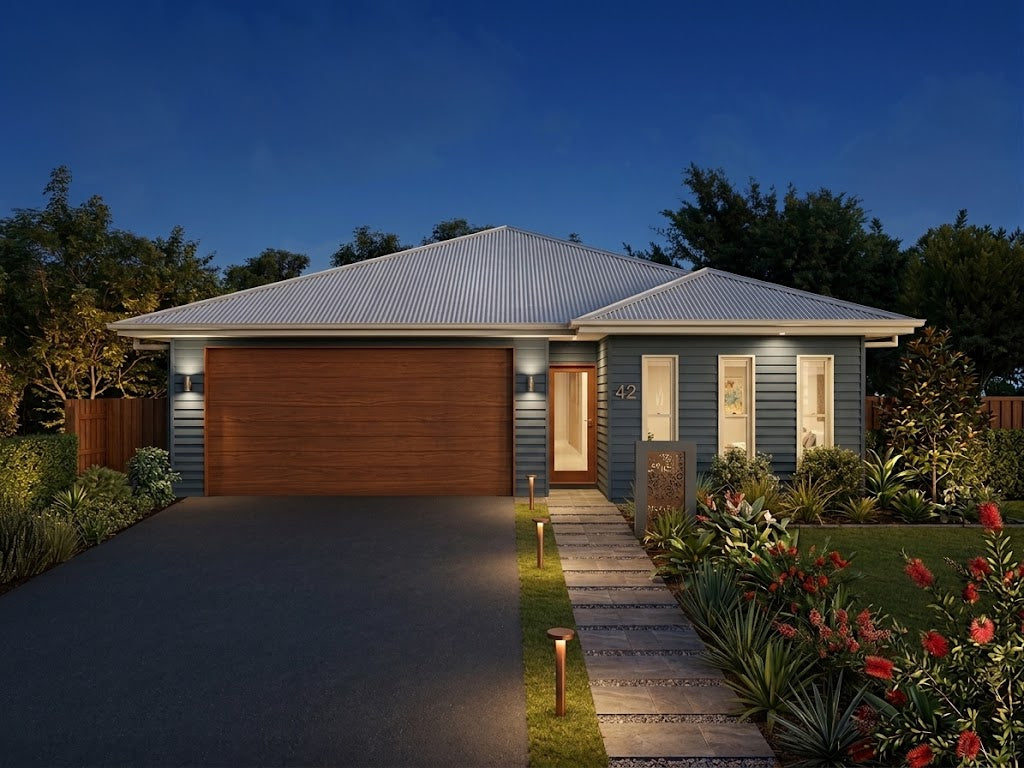

T5008-B Traditional Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
🏡 KEY SPECS
280.7 m² 🛏️ 5 Bedrooms 🛁 2.5 Bathrooms 🚗 2 Car Garage 🏠 1 Storey
🏠 DESCRIPTION
This spacious five-bedroom single-storey home offers the perfect blend of comfort, function and family-friendly design. With a private master suite, open-plan living, and a dedicated kids’ retreat, it provides plenty of room for everyone — all thoughtfully arranged over one convenient level.
✨ FEATURES
-
👑 Master bedroom positioned at the front of the home featuring:
-
Walk-in wardrobe
-
Large private ensuite for added luxury
-
-
🍽️ Central open-plan kitchen, dining and living area — the heart of the home
-
👩🍳 Modern kitchen boasting:
-
Island bench for entertaining and casual dining
-
Walk-in pantry with ample storage
-
Open study nook ideal for homework or a compact workspace
-
-
🚻 Powder room conveniently located near living areas
-
🧺 Separate laundry with external access
-
🧒 Kids’ retreat / second living room surrounded by:
-
Four bedrooms, each with their own walk-in wardrobe
-
Main family bathroom with modern finishes
-
-
🌤️ Functional single-level layout ideal for family life
-
🚗 Double garage with internal access
💡 HIGHLIGHTS
-
Family-friendly design with distinct living and sleeping zones
-
Five-bedroom layout maximising comfort and privacy
-
Open-plan living and alfresco connection perfect for entertaining
-
Study nook and kids’ retreat for flexible modern living
-
Ideal for wide suburban or acreage blocks
Floor Plan
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
