KEY SPECS

371.2m2       4 Bedrooms       3 Bathrooms       2 Car Garage       2 Storey

DESCRIPTION

This floor plan is an adaptation of our M3001 floor plan design.

  • Open plan kitchen/dining/living

  • Two bedrooms with built in robes

  • Guest bedroom

  • Rumpus room with wet bar

  • Full bathroom downstairs

  • The guest bedroom, rumpus and bath could easily be used as an internal granny flat

  • Master bedroom with walk in robe, ensuite and private outside patio

  • Kids retreat

  • Large study nook

  • Large outside deck + pool area

  • Main bathroom

  • Laundry

  • Outside alfresco with BBQ area


To modify this floor plan please contact us for a FREE quote. Click Here.

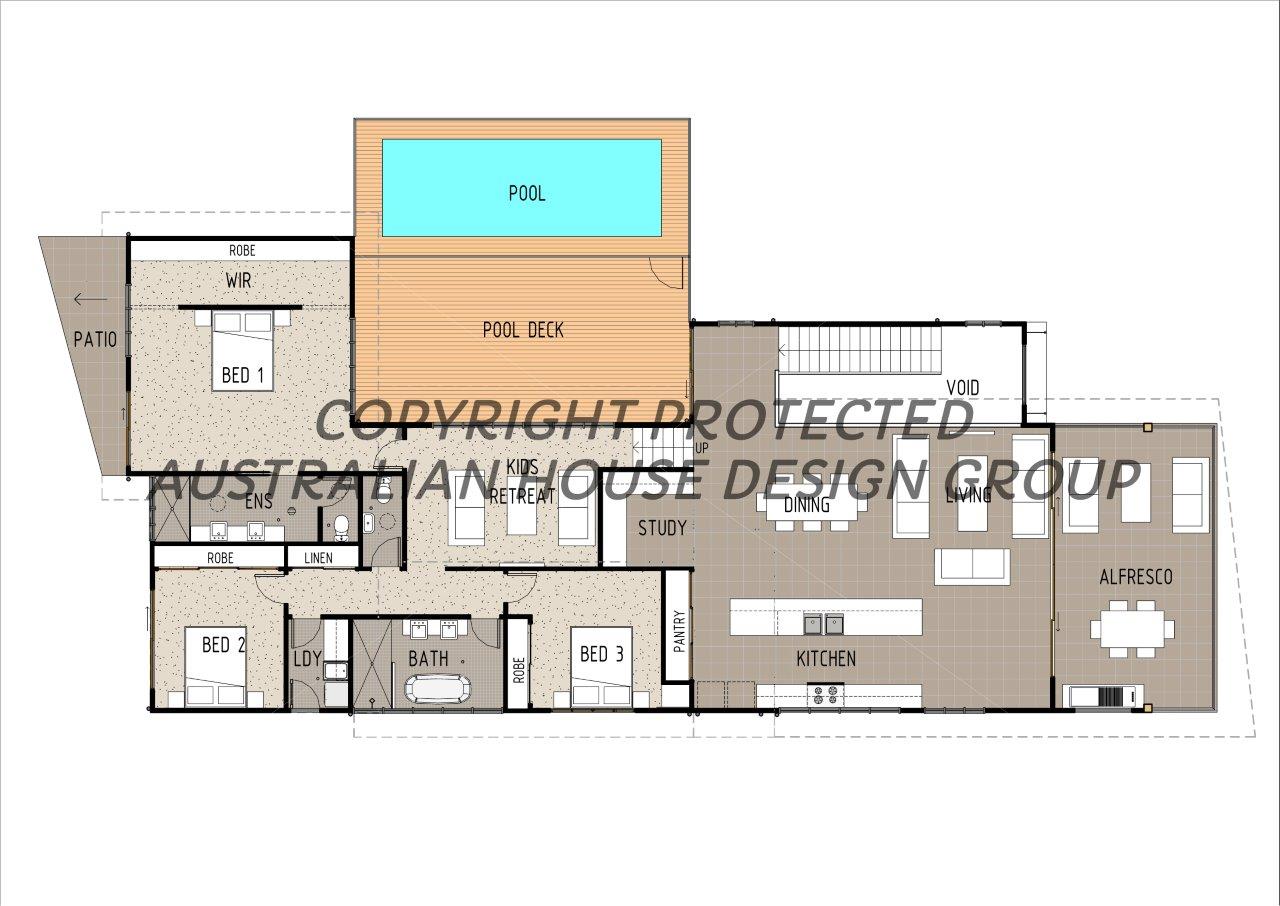

Floor Plan
Ground Floor

First Floor


All Our Full Working Drawings Sets include the following:

  • Floor plans
  • Site plan (if we have your site survey)
  • Elevations
  • Sections
  • Roof plan
  • Area legend
  • Door and Window schedule
  • 3D perspectives (black and white)



Additional services we can offer include*:

  • Wet area details
  • Construction details
  • Shadow diagrams
  • Colour floor plans, elevations and perspectives
  • Modifications to designs
  • Electrical Plan
  • Floor finishes plan
  • Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings.

Please contact us if you have any questions
