363.8m2 4 Bedrooms 4 Bathrooms 2 Car Garage 2 Storey
This is a modified version of our M4024 design as well as our M5005 design.
Open plan kitchen/dining/living
Modern kitchen featuring an island bench and Large walk in pantry
Internal granny flat area featuring:
- bedroom with built in robe
- living room with kichenette
Gorgeous curved wall along the entrance, bed 4 and powder room
Powder room downstairs

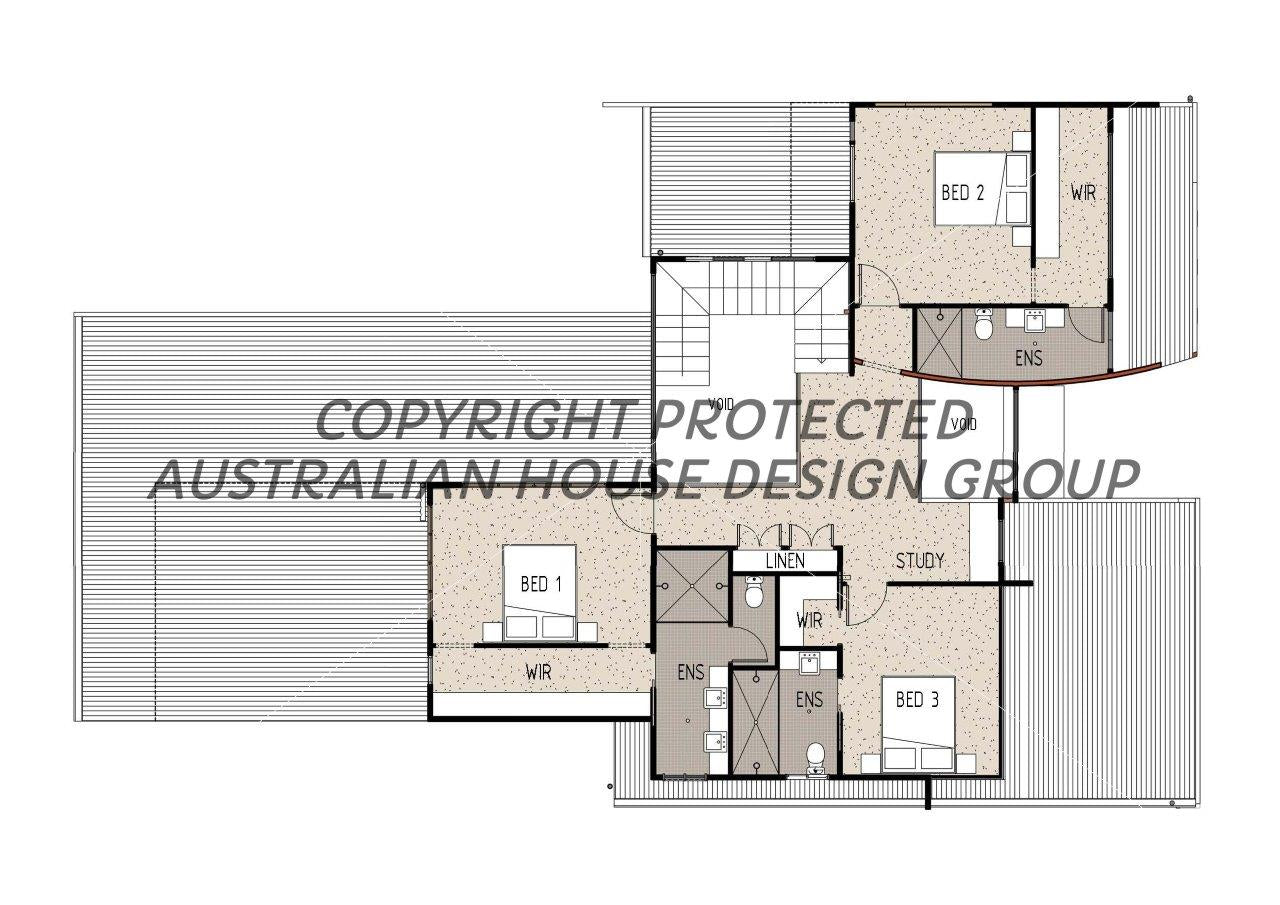

Three bedrooms upstairs - all with walk in robes and ensuites - any of these could be used as the master bedroom
Study nook upstairs
Large outside alfresco
To modify this floor plan please contact us for a FREE QUOTE. Click Here.
All Our Full Working Drawings Sets include the following:
- Floor plans
- Site plan (if we have your site survey)
- Roof plan
- Area legend
- Door and Window schedule
- 3D perspectives (black and white)
Additional services we can offer include*:
- Wet area details
- Construction details
- Shadow diagrams
- Colour floor plans, elevations and perspectives
- Modifications to designs
- Electrical Plan
- Floor finishes plan
- Slab layout plan
*Additional services will be charged at a rate of $132 per hour.
Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.
AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
Please contact us if you have any questions
