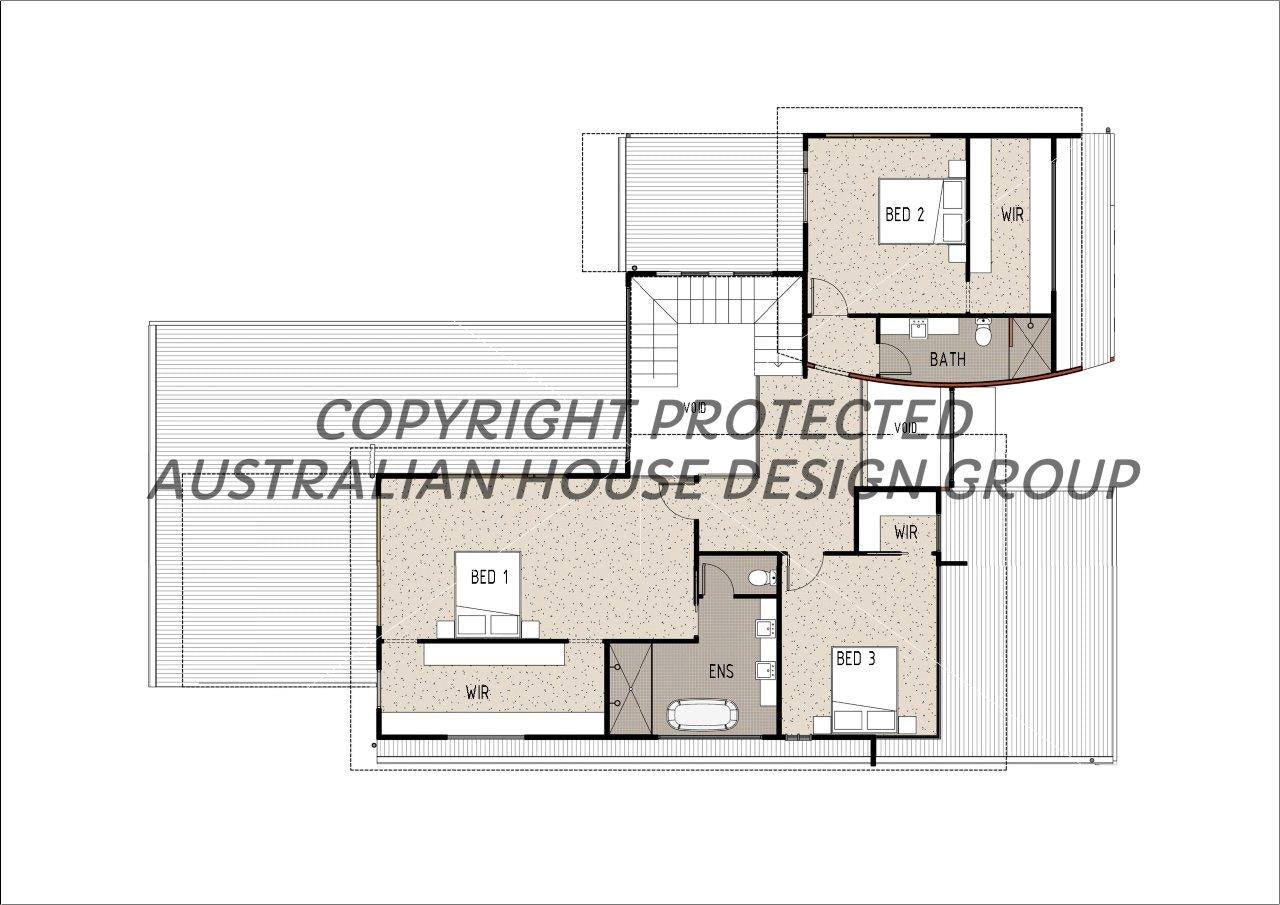

365.5m2 4 Bedrooms 3.5 Bathrooms 2 Car Garage 2 Storey
This floor plan is a modified version of our M5005 and M4022 designs.
Open plan kitchen/dining/living
Kitchen featuring an island bench and walk in pantry
Internal granny flat area featuring:
- bedroom with built in robe
- dual access ensuite bathroom
- large rumpus room with storage cupboard
Stunning curved wall from the entrance right through to the inside
One bedroom with walk in robe
Two master bedrooms with walk in robes and ensuites
Powder room downstairs
To modify this floor plan please contact us for a FREE QUOTE. Click Here.
All Our Full Working Drawings Sets include the following:
- Floor plans
- Site plan (if we have your site survey)
- Roof plan
- Area legend
- Door and Window schedule
- 3D perspectives (black and white)
Additional services we can offer include*:
- Wet area details
- Construction details
- Shadow diagrams
- Colour floor plans, elevations and perspectives
- Modifications to designs
- Electrical Plan
- Floor finishes plan
- Slab layout plan
*Additional services will be charged at a rate of $132 per hour.
Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.
AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings.
Please contact us if you have any questions
