D3005

🏘 KEY SPECS

📐 480 m² (Total)  🏠 2 Dwellings (Duplex / Townhouses)  🛏 3 Bedrooms Each  🛁 2.5 Bathrooms Each  🚗 1 Car Garage Each  🏗 2 Storey
📏 Minimum Site Size: 676.23 m²

✨ DESCRIPTION

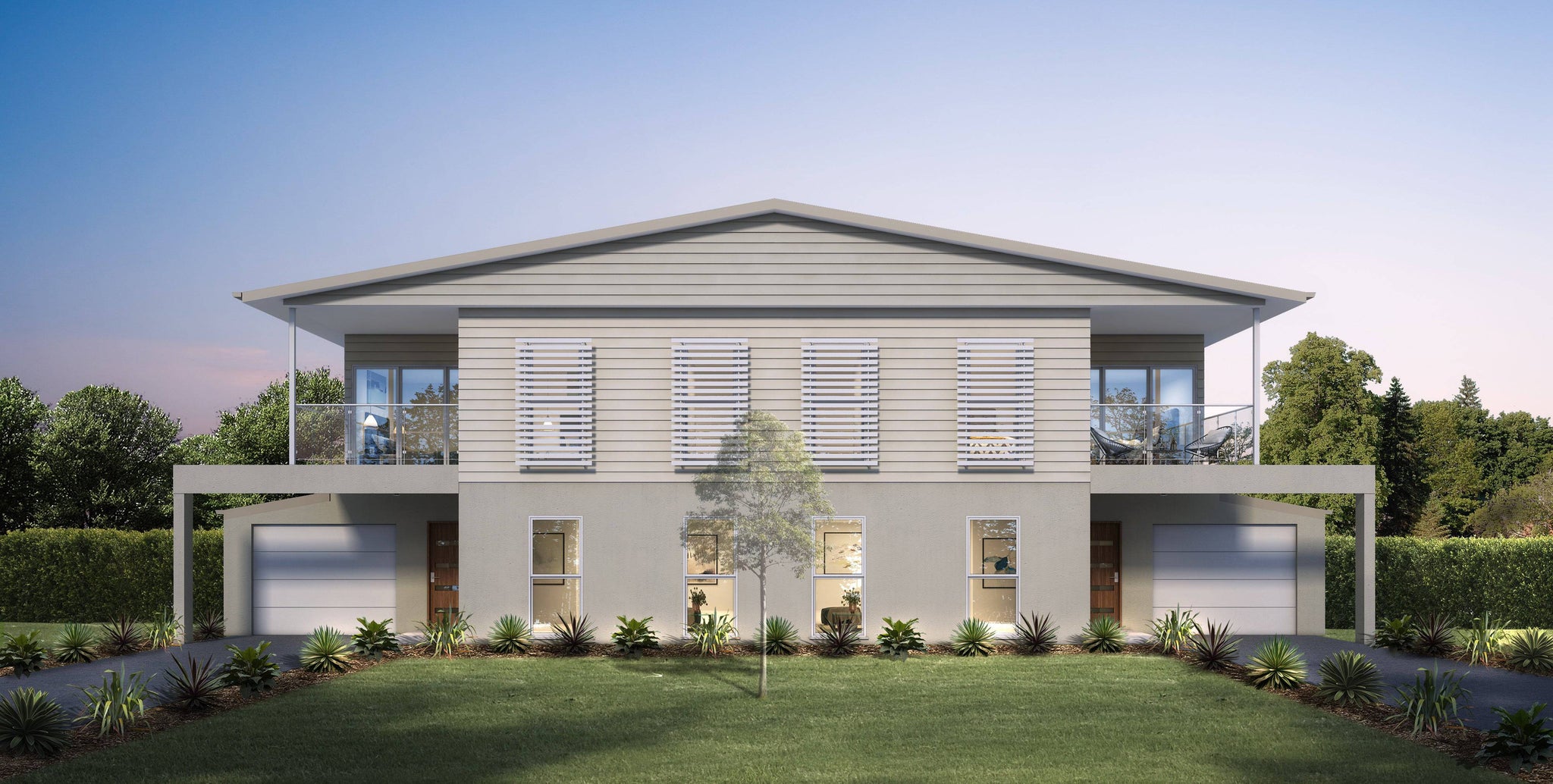

This modern and practical duplex / townhouse design features two spacious two-storey homes, each crafted for comfort, functionality, and style. Perfect for investors, developers, or dual-living families, each residence offers multiple living zones, a private deck, and light-filled interiors.

• 🚗 Private single-car garage with internal access

• 🍽 Large open-plan living and dining area for family interaction

• 👩🍳 Separate kitchen featuring a walk-in pantry

• 💻 Dedicated study perfect for working from home

• 🧺 Separate laundry with easy outdoor access

• 🚻 Powder room conveniently located on the ground floor

• 🌤 Private outdoor deck for entertaining or relaxing

• 🛏 Two bedrooms with built-in robes

• 🛏 Master bedroom with large walk-in wardrobe, private ensuite, and balcony access

• 📺 Separate T.V / sitting room upstairs, also with balcony access

• 🛁 Main family bathroom with stylish finishes

Developers, investors, or families seeking two full-size homes on one block with dual-income potential and low-maintenance modern living.

Floor Plan
Ground Floor

First Floor

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.

Please contact us if you have any questions
