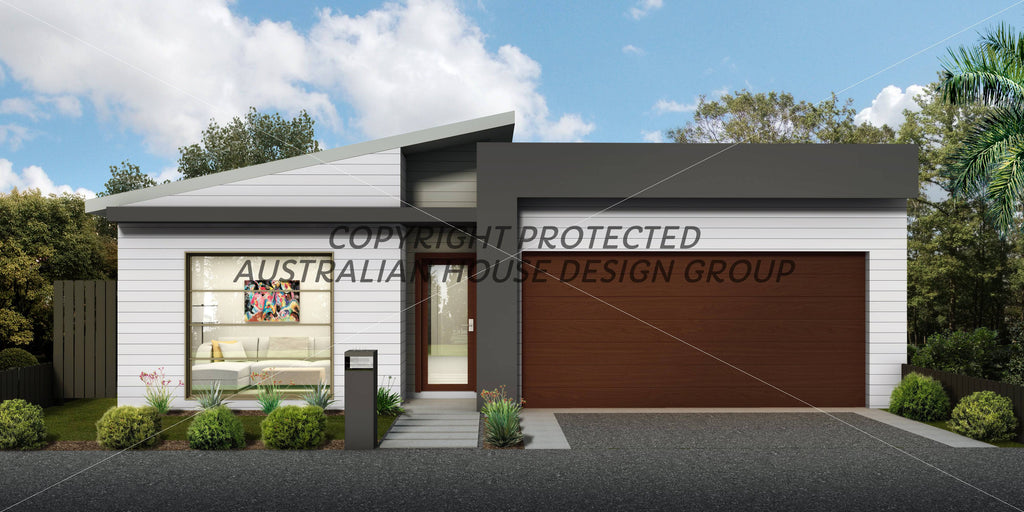

RA4001-B

Total Area: 205.9 m²   |   4 Bedrooms 🛏️   |   3 Bathrooms 🛁   |   2 Car Garage 🚗   |   Single Storey 🏡

This 4-bedroom Rooming Accommodation design offers a compact and compliant layout ideal for investors and developers targeting the shared living, student housing, or NDIS markets.

Designed to meet Rooming Accommodation Code and Class 1B certification standards, it combines private bedroom comfort with well-planned shared living areas — providing the perfect blend of independence and community for occupants.

Each of the four bedrooms includes:

• 🧺 Built-in wardrobe

• 💻 Study desk

• 🍶 Bench for mini fridge or tea/coffee station

Additional bedroom details:

• ♿ Bedroom 1 includes an AS1428.1-compliant PWD bathroom

• 🚿 Private ensuite bathrooms to Bedrooms 1 and 3

• 🍳 Open-plan kitchen, dining, and living area for shared use

• 🛁 Main bathroom accessible to Bedrooms 2 and 4

• 🌿 Outdoor alfresco area for relaxation or entertaining

• 🚗 Double car garage with built-in storage

• 🧺 Separate shared laundry

• 📦 Additional storage room for housekeeping or resident use

This plan fully complies with the accessibility and amenity standards required under the Rooming Accommodation Code, and can be certified as a Class 1B building for Building Approval.
All design elements — including access, bathroom layouts, and fire separation — are tailored to meet Class 1B certification requirements, ensuring a smooth approval process.

✅ Investors targeting high-yield shared accommodation projects
✅ Developers working in NDIS, student, or worker housing sectors
✅ Builders requiring Class 1B plans
✅ Compact lots seeking maximum rental return with minimal footprint

Floor Plan

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
