T4004-A Traditional Design
Taxes included.
Choose your plan package
Preview Set: Dimensioned floor plans and external elevations in PDF format, for comparing layouts and preliminary site fit. Not for construction or approval submissions.
Working Set: Everything in the Preview Set, plus editable DWG/AutoCAD files for your chosen professional to adapt.
Site-specific drawings, engineering and approvals are not included. Revit files are priced separately on request.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description

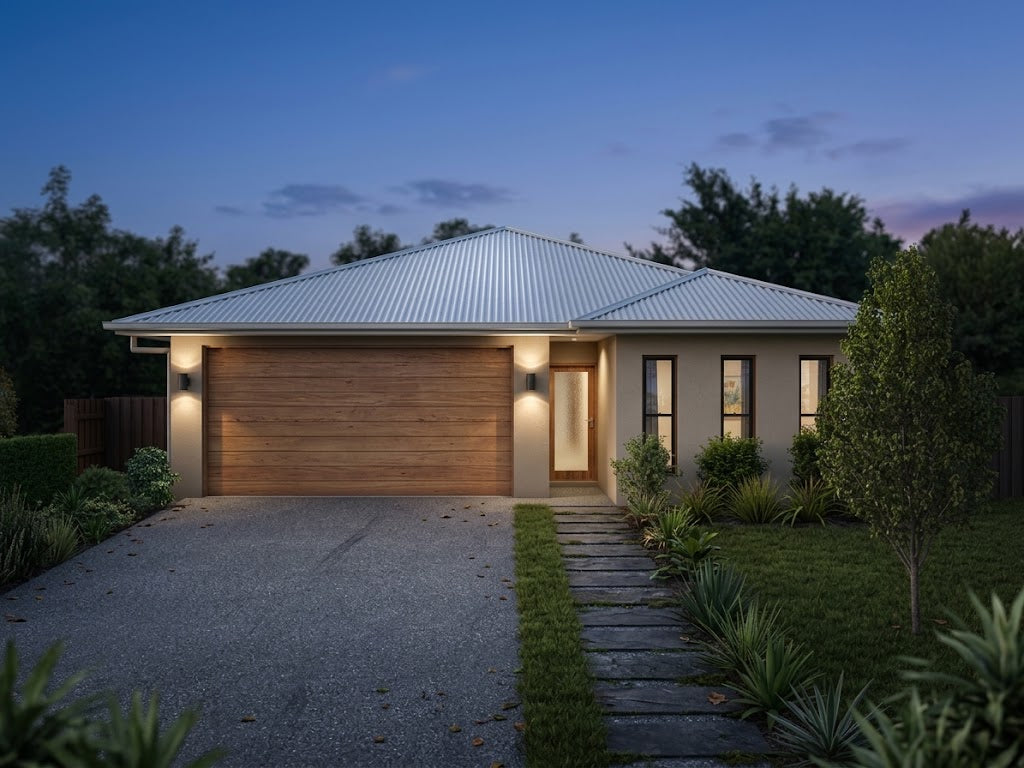

T4004-A is a 189.6 m² single-storey traditional house plan with 4 bedrooms, 2 bathrooms and a double garage.
This purchase is a ready-made digital house-plan set, not a physical home or site-approved construction package. The Preview Set includes dimensioned floor plans and external elevations. The Working Set adds CAD files. Local review, adaptation and any required approvals must be arranged before building. Custom drafting and site-specific approval drawings are available in Australia only. Read the guide for international buyers.
🏠 KEY SPECS
189.6 m² 🛏️ 4 Bedrooms 🛁 2 Bathrooms 🚗 2 Car Garage ⬇️ 1 Storey
✨ DESCRIPTION
A traditional and timeless four-bedroom family home design that blends practicality with comfort.
This single-storey layout offers a seamless flow from entry to open-plan living, featuring well-zoned bedrooms, a private master suite, and flexible living spaces that can adapt to your family’s needs.
🌿 FEATURES YOU’LL LOVE
-
🚪 Private master suite with walk-in robe & ensuite
-
🏡 Open-plan kitchen, dining & living at the heart of the home
-
🍳 Modern kitchen with island bench & alfresco connection
-
🌤️ Outdoor alfresco positioned for natural light & outdoor views
-
🛏️ Three additional bedrooms with built-in robes
-
🛋️ Separate TV/formal lounge — can be opened up for a larger family space
-
🧺 Separate laundry with garage access
-
🚗 Double garage with rear storage area
-
🛁 Main family bathroom conveniently located near bedrooms
💡 WHY THIS DESIGN STANDS OUT
✔️ Classic four-bedroom layout perfect for families
✔️ Optional open-plan conversion by removing lounge wall
✔️ Zoned design for privacy and practicality
✔️ Seamless indoor–outdoor flow for entertaining
✔️ plan that’s both functional and affordable
🧭 IDEAL FOR
Those seeking:
-
A 4-bedroom single-storey home
-
A traditional family layout with flexible living options
-
A home design with alfresco and dual living zones
-
A plan that maximises functionality and comfort

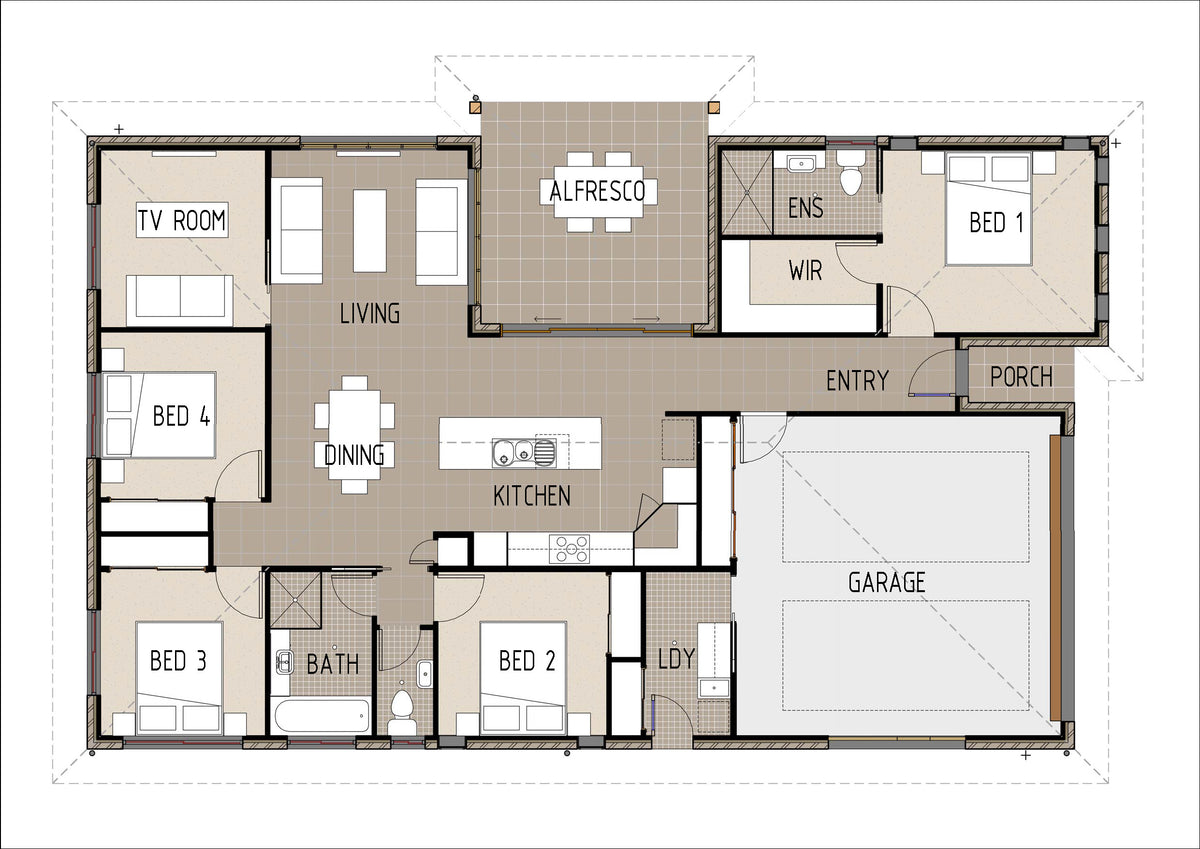

Floor Plan
Inclusions
Preview Set
Our Preview Set is for comparing layouts and discussing preliminary site fit, not for construction or an approval submission. Accurate dimensions of all rooms are provided along with external elevations which show details such as windows, doors, wall materials and roof style. These sets are priced low in order to allow for multiple sets to be purchased for comparison purposes. Set includes:
- Dimensioned floor plans in PDF format
- External elevations in PDF format
Working Set
Our working sets include all of the above plus the addition of CAD files. The Working Set adds editable DWG/AutoCAD files for your chosen professional to adapt the design. Purchasing these files does not include completed site-specific working drawings, structural engineering, energy assessments or approval submissions unless separately agreed. CAD files are provided to allow you the flexibility to chose your own designer to finalise the drawings or you may contact us for a quote to complete your working drawings for you. Set includes:
- Dimensioned Floor Plans
- All external elevations
- DWG/AutoCAD files
Can I use my own designer or builder?
Take the selected files to your own suitable professional, confirm software compatibility and agree who will complete site-specific drawings, engineering and any required approvals. AHDG custom drafting and site-specific approval drawings are offered only in Australia.
Can I build the plan more than once?
The published Copyright Agreement describes ordinary purchases as licensed for one build, with separate repeat-use provisions and an exception for eligible Builders Packages with CAD files. Check your exact package; editable files do not by themselves grant repeat-build, resale or redistribution rights. Read the Copyright Agreement.
What should I do after download?
Review the dimensions and elevations, confirm your permitted use, then arrange local site review and any necessary adaptation before construction. Compare PDF and CAD house plans.
