UD3001

Total GFA: 393.94 m²   |   3 × 3-Bedroom Townhouses 🏠
Minimum Site Size: 501 m² (19.8 m W × 25.3 m D) 📐

This three-townhouse development is designed for medium-density sites and offers a perfect blend of comfort, functionality, and investment value.
Each townhouse delivers spacious open-plan living, modern kitchens, private outdoor spaces, and secure garaging — making this an excellent choice for developers or investors seeking a site-efficient townhouse project.

• 🏠 Two-storey layout with single car garage

• 🍽️ Open-plan kitchen / dining / living with a galley-style kitchen

• 🚻 Powder room conveniently located on the ground floor

• 🌤️ Outdoor alfresco with full-width glass sliding doors for natural light

• 🌿 Private backyard wrapping around the alfresco and dining zones

• 🧺 Internal laundry located at rear of the garage

• 🛏️ Upstairs: Three bedrooms, all with built-in wardrobes

• 👑 Master bedroom with private ensuite

• 🛁 Main bathroom plus study nook ideal for home office or desk area

• 🏡 Same functional layout as Townhouse 1, without the study nook

• 📏 Larger overall bedroom and living areas, offering extra space and comfort

• 🚗 Two-storey design with double car garage

• 🍽️ Open-plan kitchen / dining / living area with the kitchen at the front

• 🌤️ Outdoor alfresco leading to a spacious wrap-around backyard

• 🚻 Powder room on the ground floor

• 🧺 Internal laundry within the garage

• 🛏️ Upstairs: Three bedrooms with built-in wardrobes

• 👑 Master bedroom with private ensuite

• 🛁 Main bathroom plus open study area

✅ Developers seeking compact 3-pack townhouse projects
✅ Builders wanting fast and efficient designs
✅ Investors aiming for multi-dwelling rental income
✅ Urban infill sites with medium-density zoning

Floor Plan

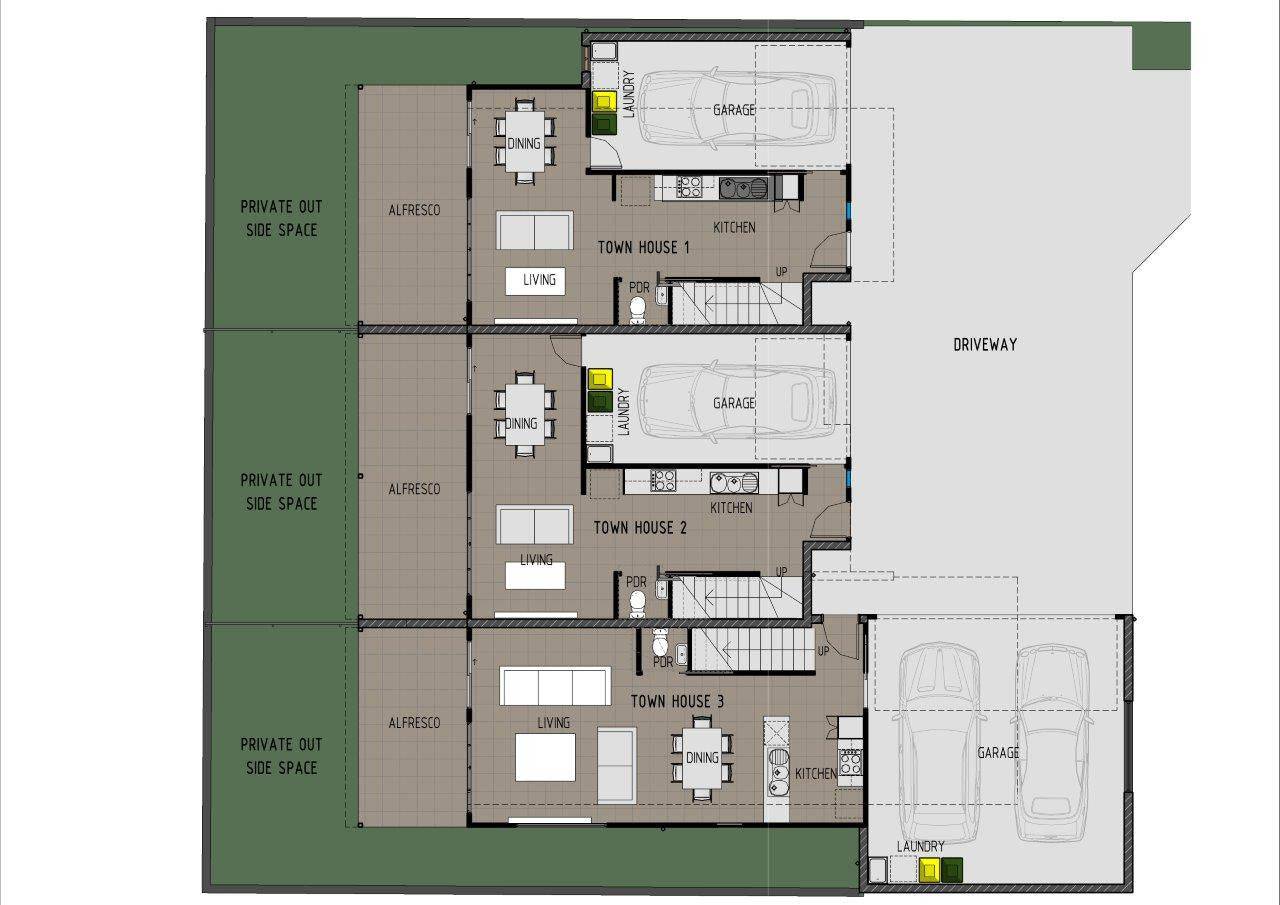

Ground Floor

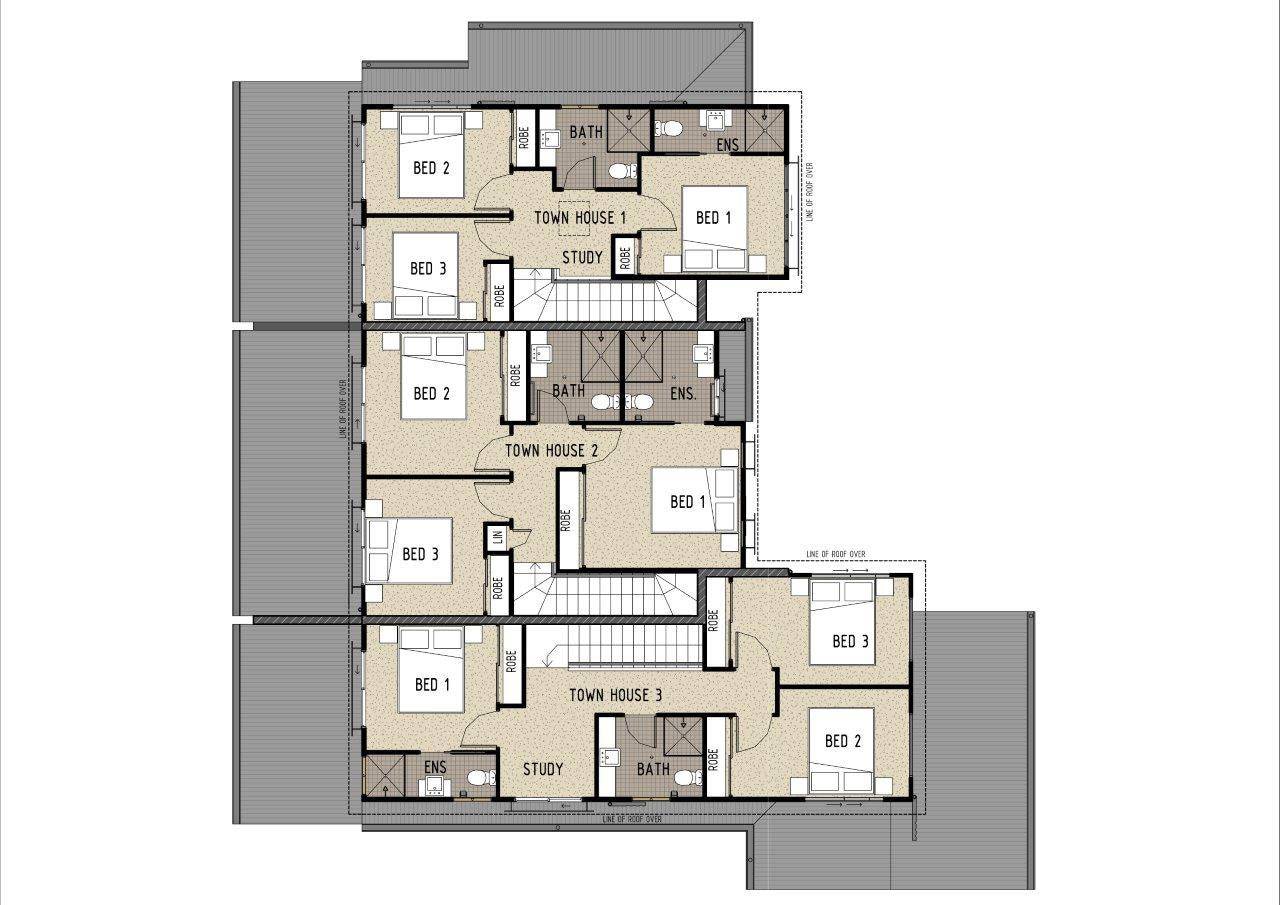

First Floor

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.

Please contact us if you have any questions
