UD7001

Total GFA: 509.8 m²   |   1 × 1-Bedroom Unit 🏠   |   6 × 2-Bedroom Units 🏘️
Minimum Site Area: 655 m² 📐

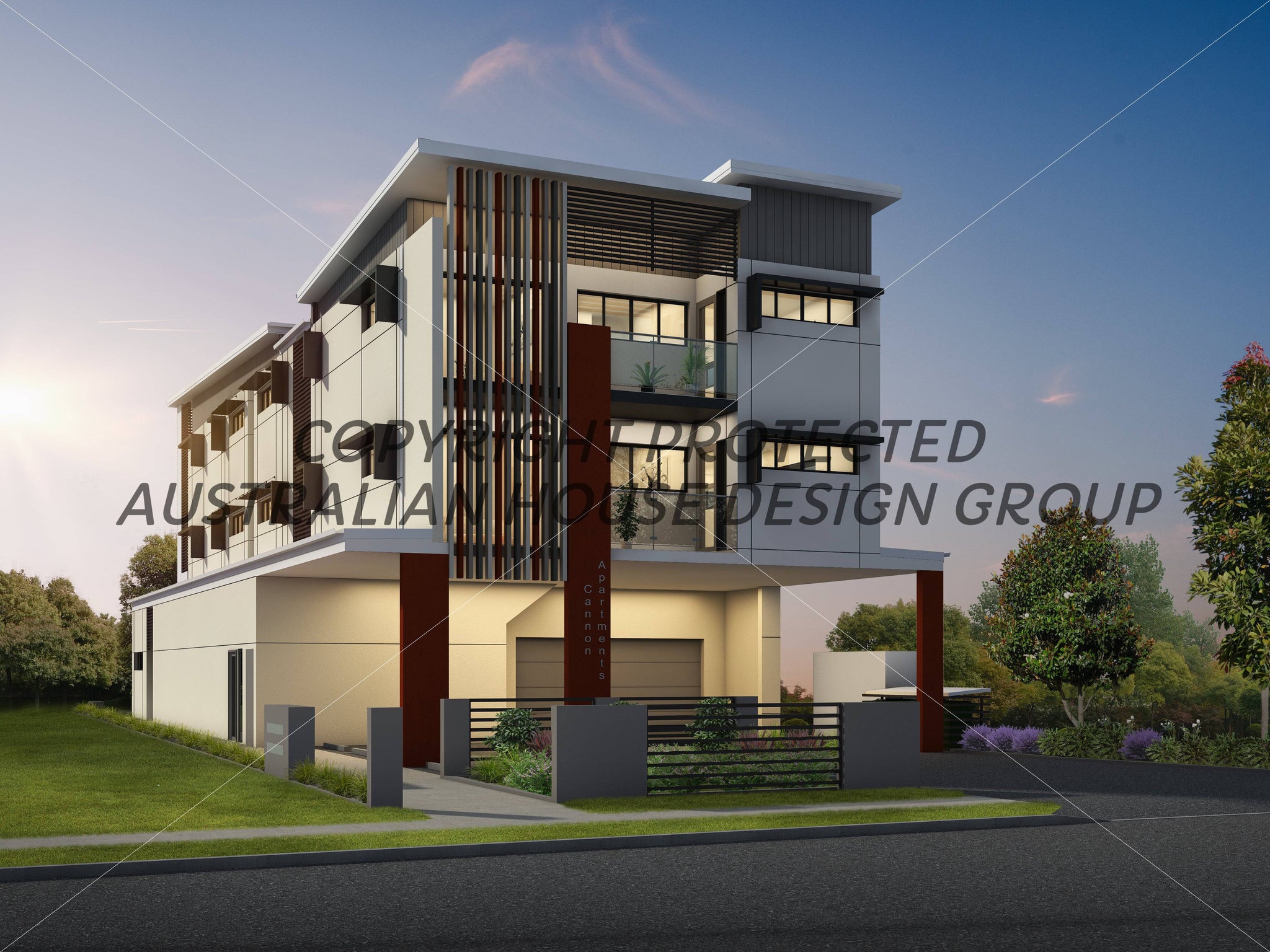

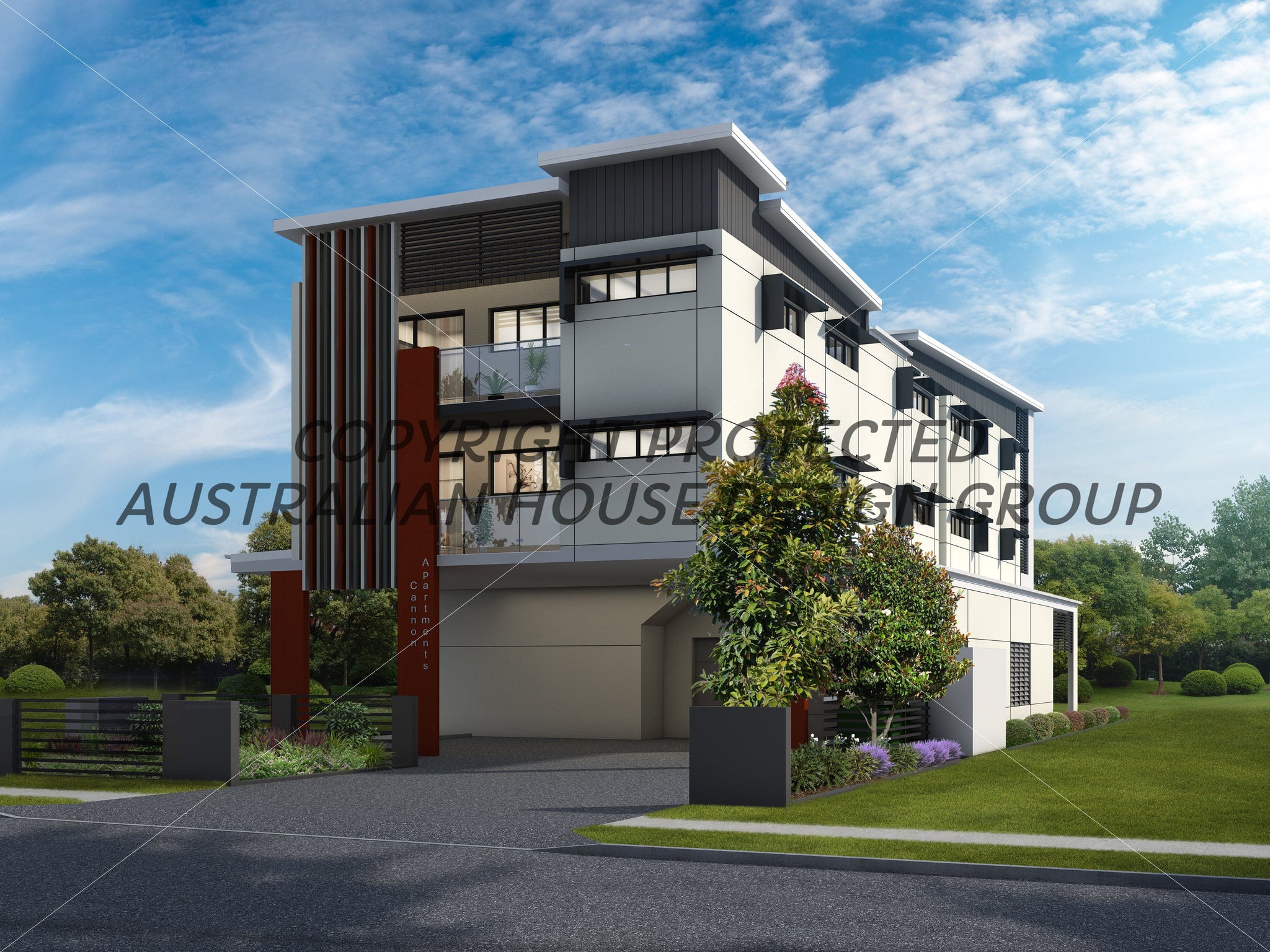

This three-storey unit development delivers a modern, compact design that perfectly suits medium-density sites and urban infill locations.
With seven well-planned apartments, this project offers a mix of one- and two-bedroom layouts designed for functionality, comfort, and market appeal.

The complex includes secure undercover parking, visitor bays, and dedicated bike storage, all connected via a lift and internal stairwell for easy access across all floors.
This design is ideal for developers and investors seeking a high-yield, low-maintenance project

• 🛏️ One bedroom with built-in wardrobe

• 🛁 Main bathroom

• 🍽️ Compact open-plan kitchen / dining / living area

• 🌿 Private courtyard extending from living zone

• 🧺 Dedicated laundry space

Each of these six units features:

• 🛏️ Two bedrooms, all with built-in wardrobes

• 👑 Bedrooms 1 in Units 3, 4, 6 & 7 include private ensuites

• 🛁 Units 2 & 5 each have one main bathroom

• 🛁 Units 3, 4, 6 & 7 have two bathrooms (including ensuites)

• 🍽️ Open-plan kitchen / dining / living areas flowing to private balconies

• 🧺 Laundry facilities in each unit

• 🔒 Five undercover resident car parks

• 🚘 Four additional visitor / resident car parks at the front of the complex

• 🚲 Four-berth bike storage area

• 🛗 Lift and stair access to all floors

• 🧱 Efficient, cost-effective floorplate design

✅ Developers targeting compact urban blocks
✅ Investors seeking diverse rental mix and strong yield
✅ Builders needing construction-efficient plans
✅ Medium-density or infill sites requiring lift access and premium amenity

Floor Plan

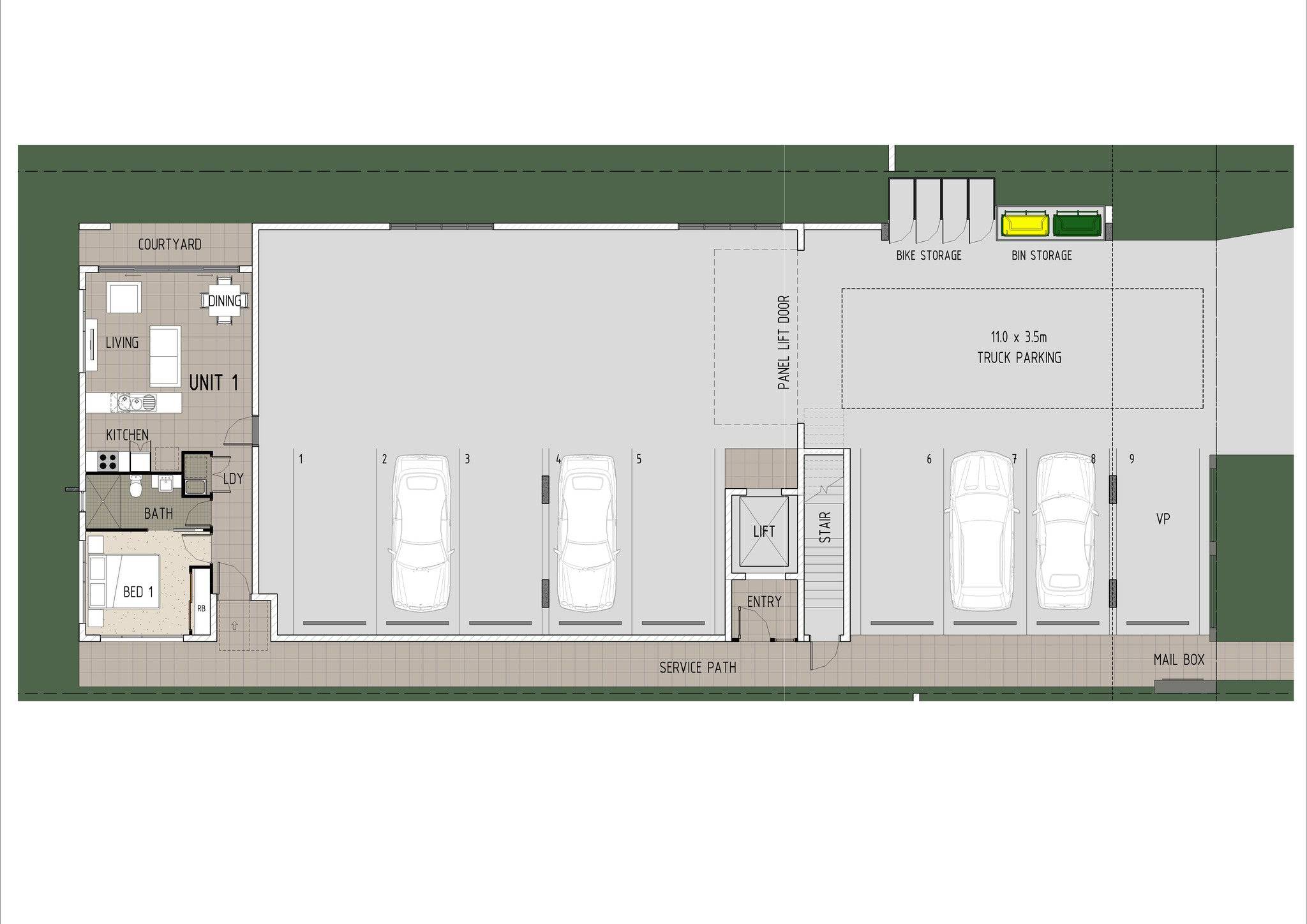

Ground Floor

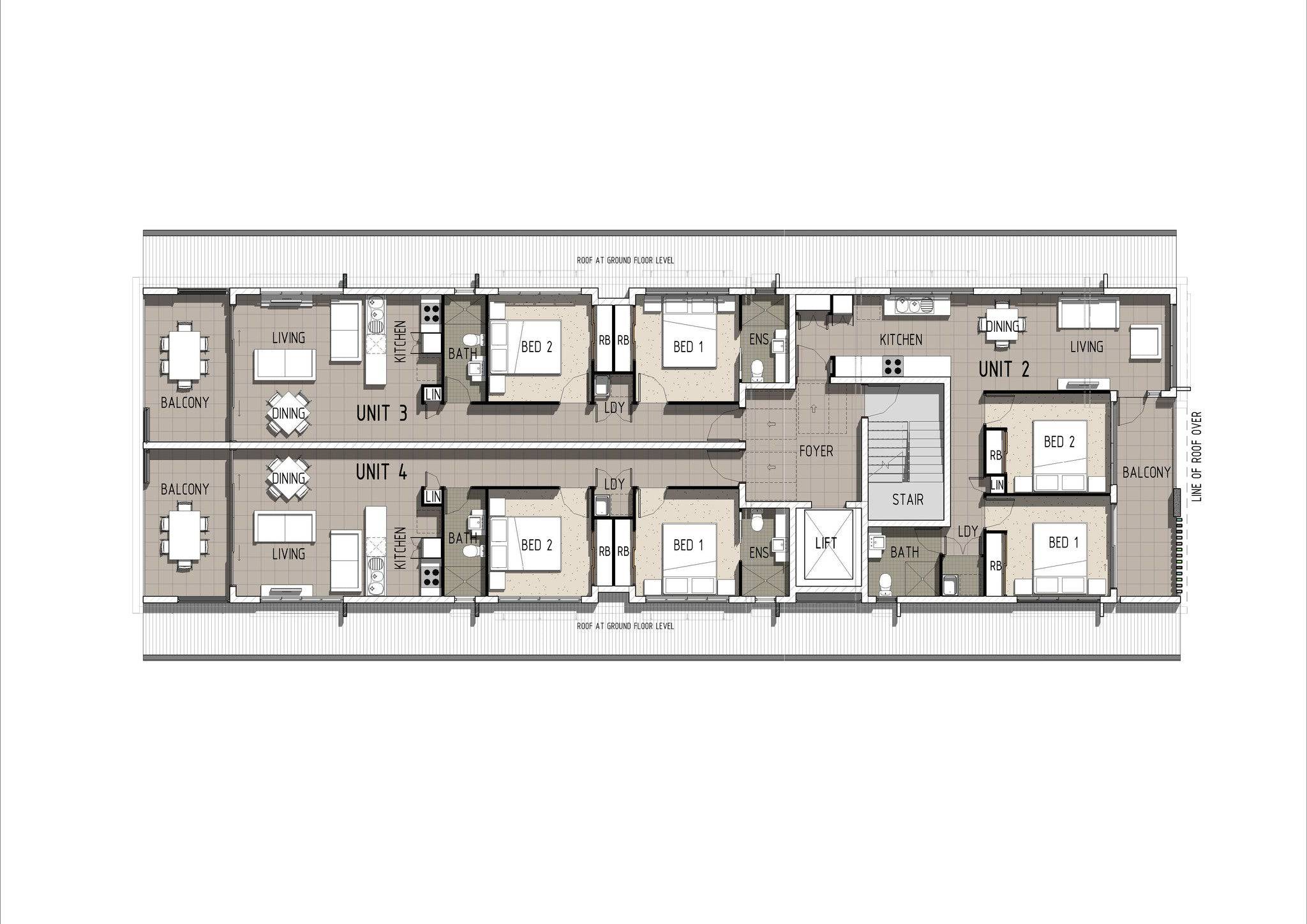

First Floor

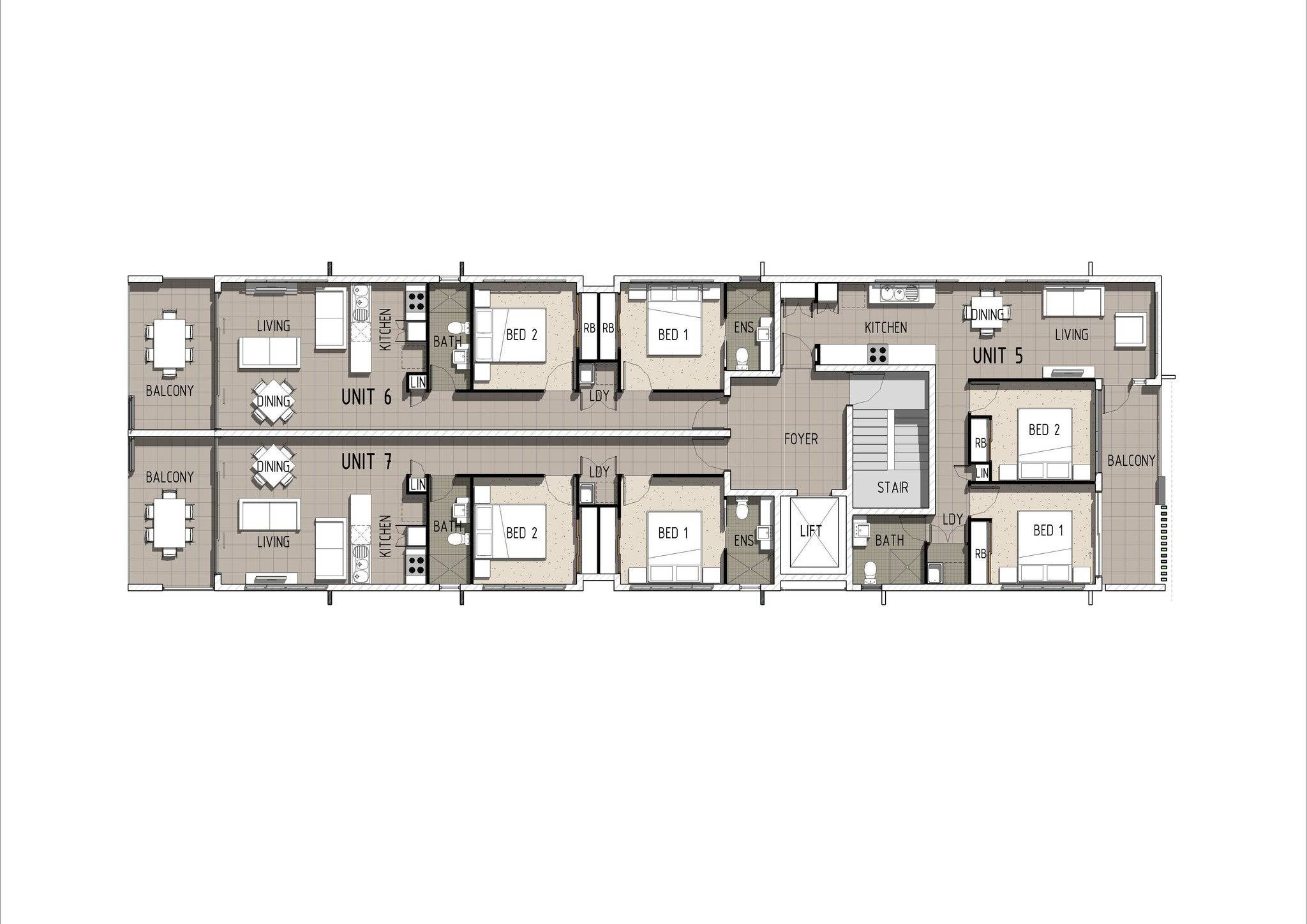

Second Floor

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
