UD7002

Total GFA: 574.9 m²   |   2 × 1-Bedroom Units 🏠   |   5 × 2-Bedroom Units 🏘️
Minimum Site Area: 600 m² (29.8 m L × 20.12 m W) 📐

This three-storey, seven-unit residential complex has been thoughtfully designed for medium-density sites and urban infill developments.
With a balanced mix of 1- and 2-bedroom units, the design delivers strong rental flexibility and market appeal — ideal for developers, investors, and builders looking for an efficient and stylish multi-unit project.

The complex includes nine carparks and a central stairway providing access to all levels, ensuring convenience and a compact, cost-effective layout.

• 🛏️ One bedroom with built-in wardrobe

• 🛁 Main bathroom

• 🧺 European-style laundry

• 🍽️ Open-plan kitchen / dining / living area

• 🌿 Private outdoor courtyard extending from living space

• 🛏️ Two bedrooms per unit

• 👑 Master bedroom with private ensuite

• 🛁 Main bathroom for guests or second bedroom

• 🧺 European-style laundry

• 🍽️ Open-plan kitchen / dining / living with outdoor alfresco

• 💻 Unit 5 includes a study nook near the entrance

• 🌤️ Each unit includes a private outdoor space

• 🛏️ Two bedrooms per unit

• 👑 Master bedroom with walk-in wardrobe and private ensuite

• 🛁 Main bathroom

• 🧺 European-style laundry

• 🍽️ Open-plan kitchen / dining / living area

• 🌅 Private alfresco for outdoor relaxation

• 🌤️ Unit 7 includes an additional private balcony off the master bedroom

✅ Developers seeking medium-density, multi-unit projects
✅ Investors wanting a mix of 1- and 2-bedroom dwellings for rental flexibility
✅ Builders needing construction-efficient plans
✅ Urban or suburban blocks with limited frontage and high-yield potential

Floor Plan

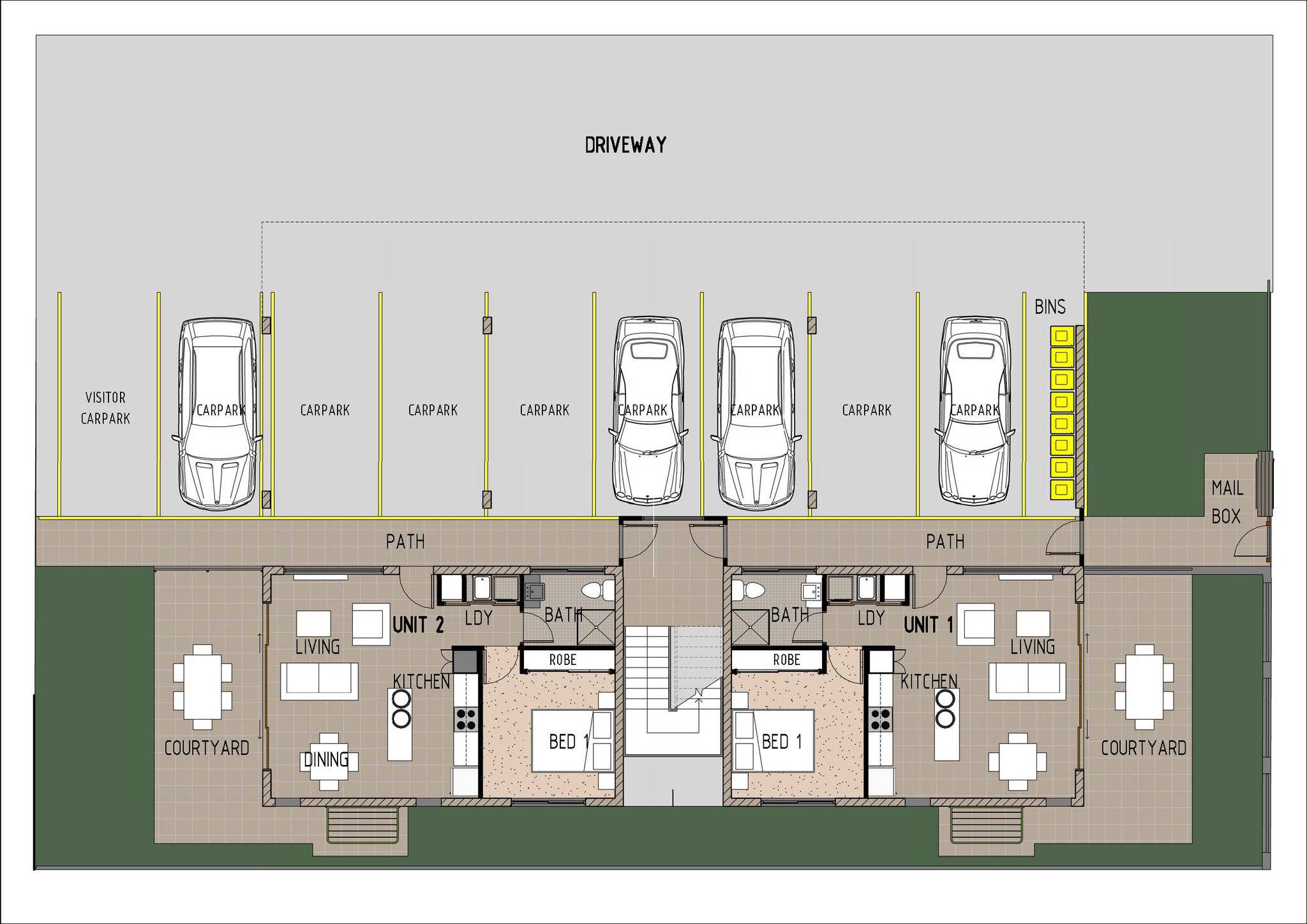

Ground Floor

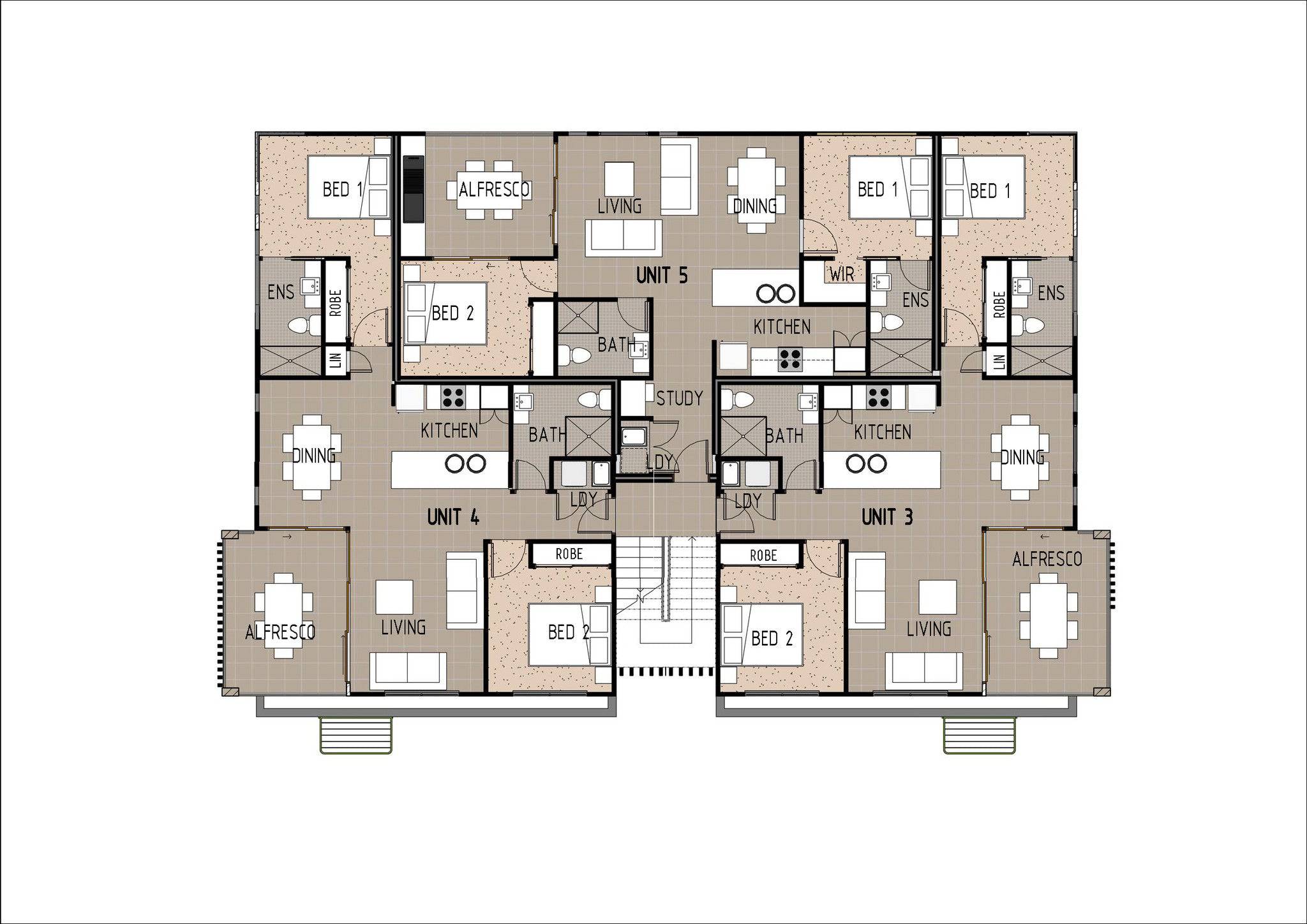

First Floor

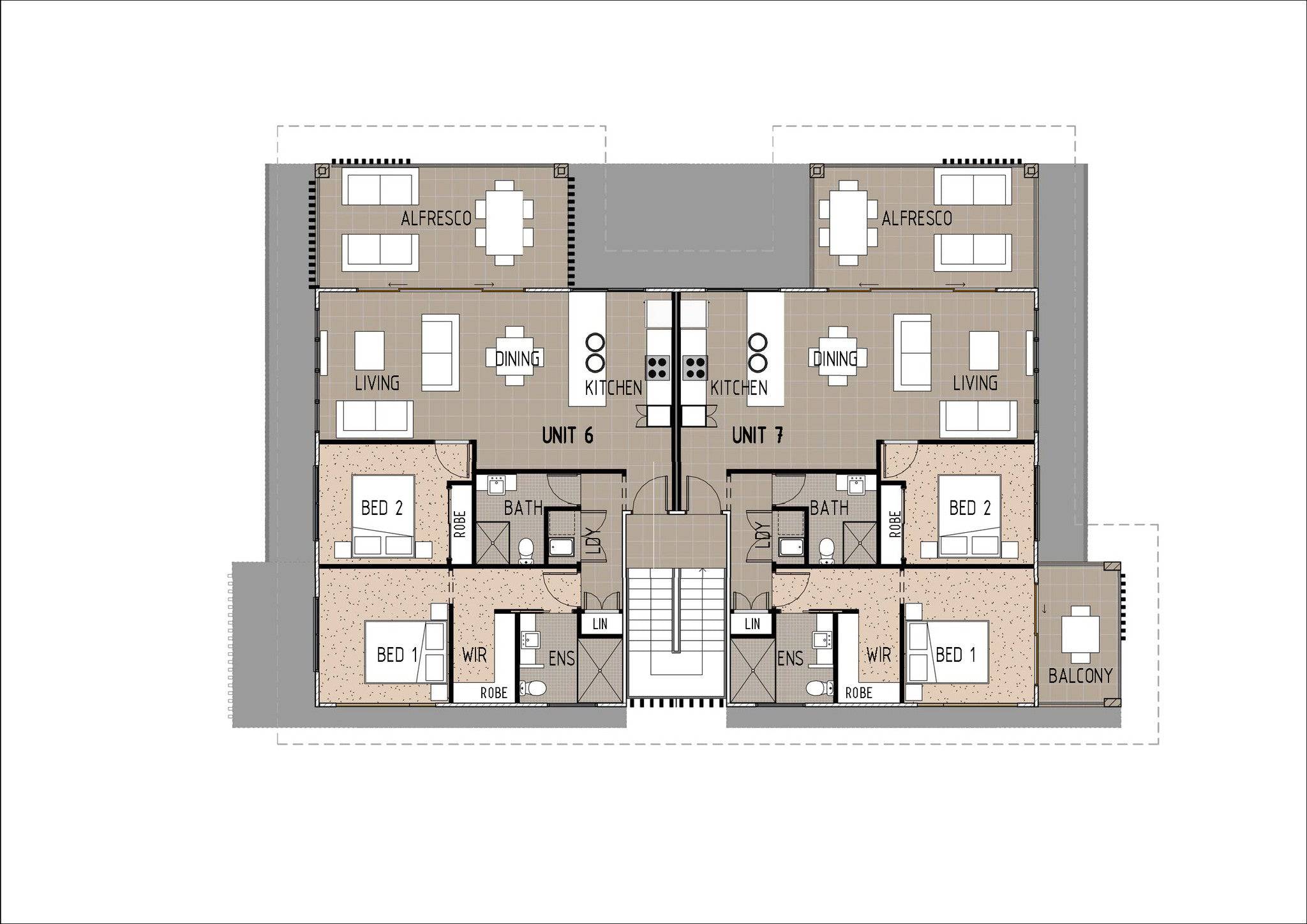

Second Floor
