M5003-AAustralian House Design Group
This large family home design is perfect for both small lots and long/skinny lots. The smart design allows everything that a large family could possibly need, spread over two generous levels.
Open plan kitchen/dining/living
Kitchen featuring island bench and walk in butlers pantry
Large media room/guest bedroom
- one bedroom with built in robe
- one bedroom with walk in robe
- one bedroom with walk in robe and ensuite

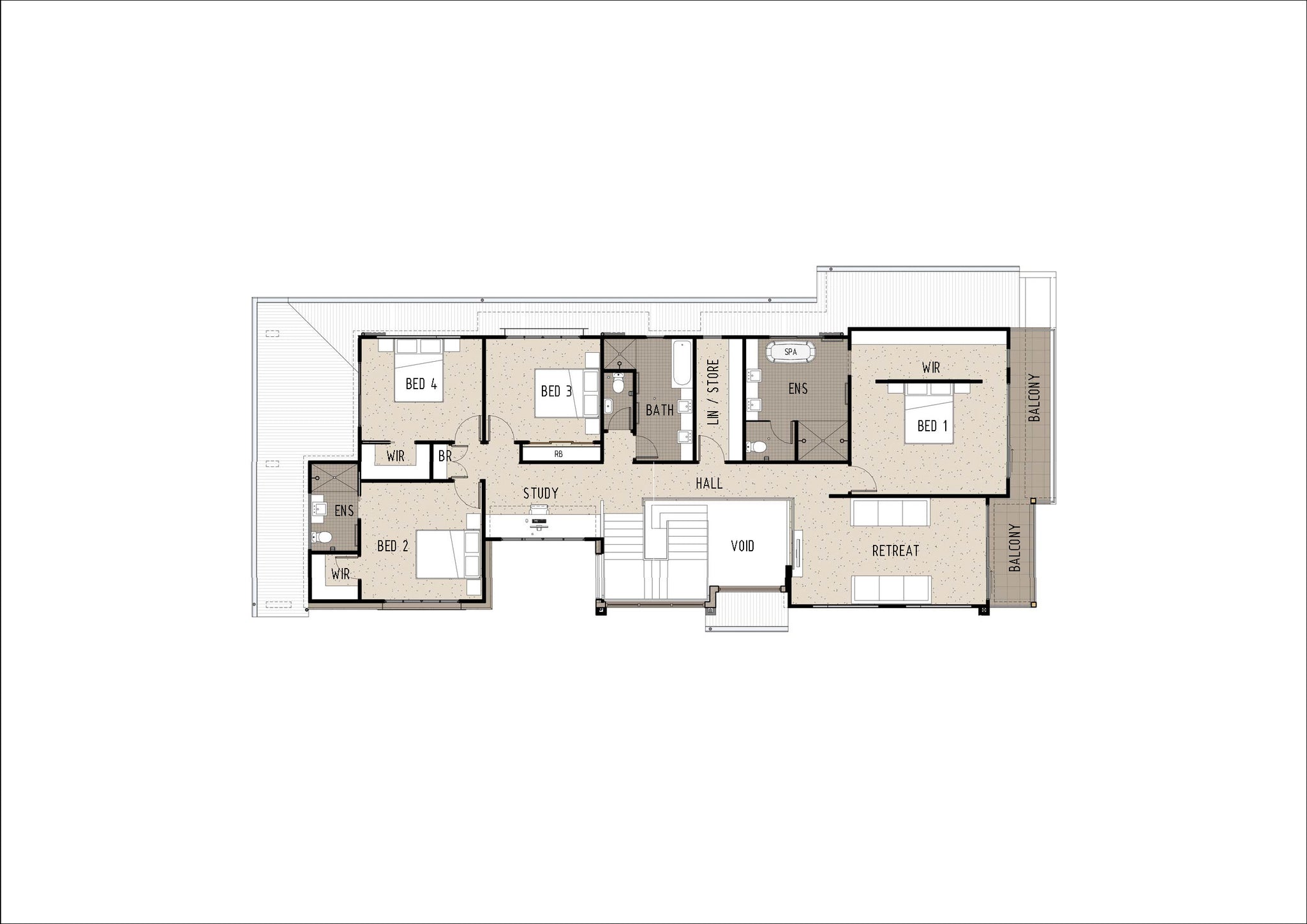

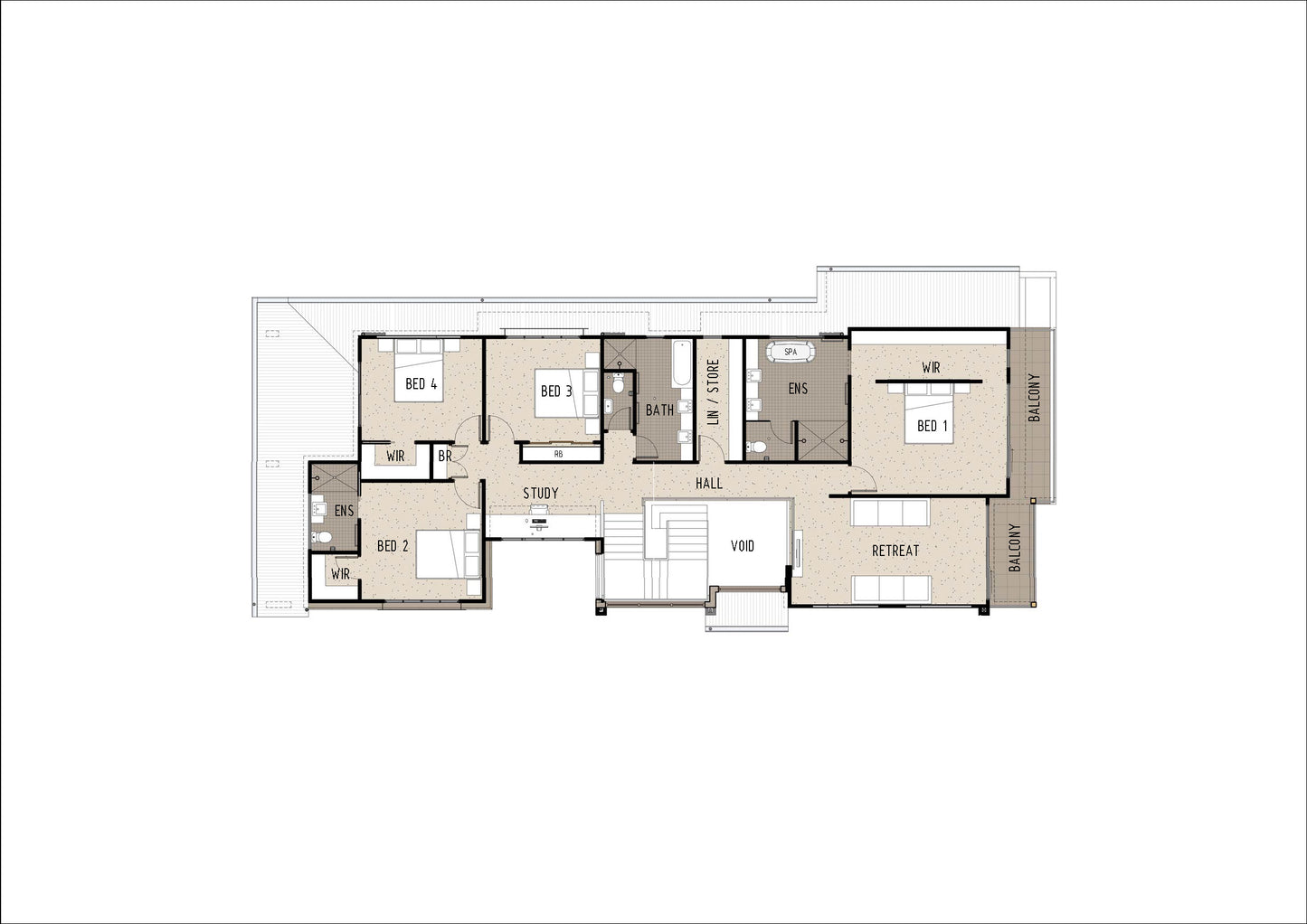

Master bedroom featuring walk in robe and ensuite
Walk in linen
Retreat/upstairs living room
Front balcony with access from master bedroom and retreat
Laundry + second walk in linen
Storage room in the garage
Two outside alfresco areas
All Our Full Working Drawings Sets include the following:
- Floor plans
- Site plan (if we have your site survey)
- Roof plan
- Area legend
- Door and Window schedule
- 3D perspectives (black and white)
Additional services we can offer include*:
- Wet area details
- Construction details
- Shadow diagrams
- Colour floor plans, elevations and perspectives
- Modifications to designs
- Electrical Plan
- Floor finishes plan
- Slab layout plan
*Additional services will be charged at a rate of $132 per hour.
Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.
AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
Please contact us if you have any questions
