M5003-BAustralian House Design Group
384.1m2 5 Bedrooms 3.5 Bathrooms 2 Car Garage 2 Storey
This modified version of the M5003-A floor plan is a more streamlined and slightly cheaper alternative
Open plan kitchen/dining/living
Kitchen featuring island bench and walk in butlers pantry

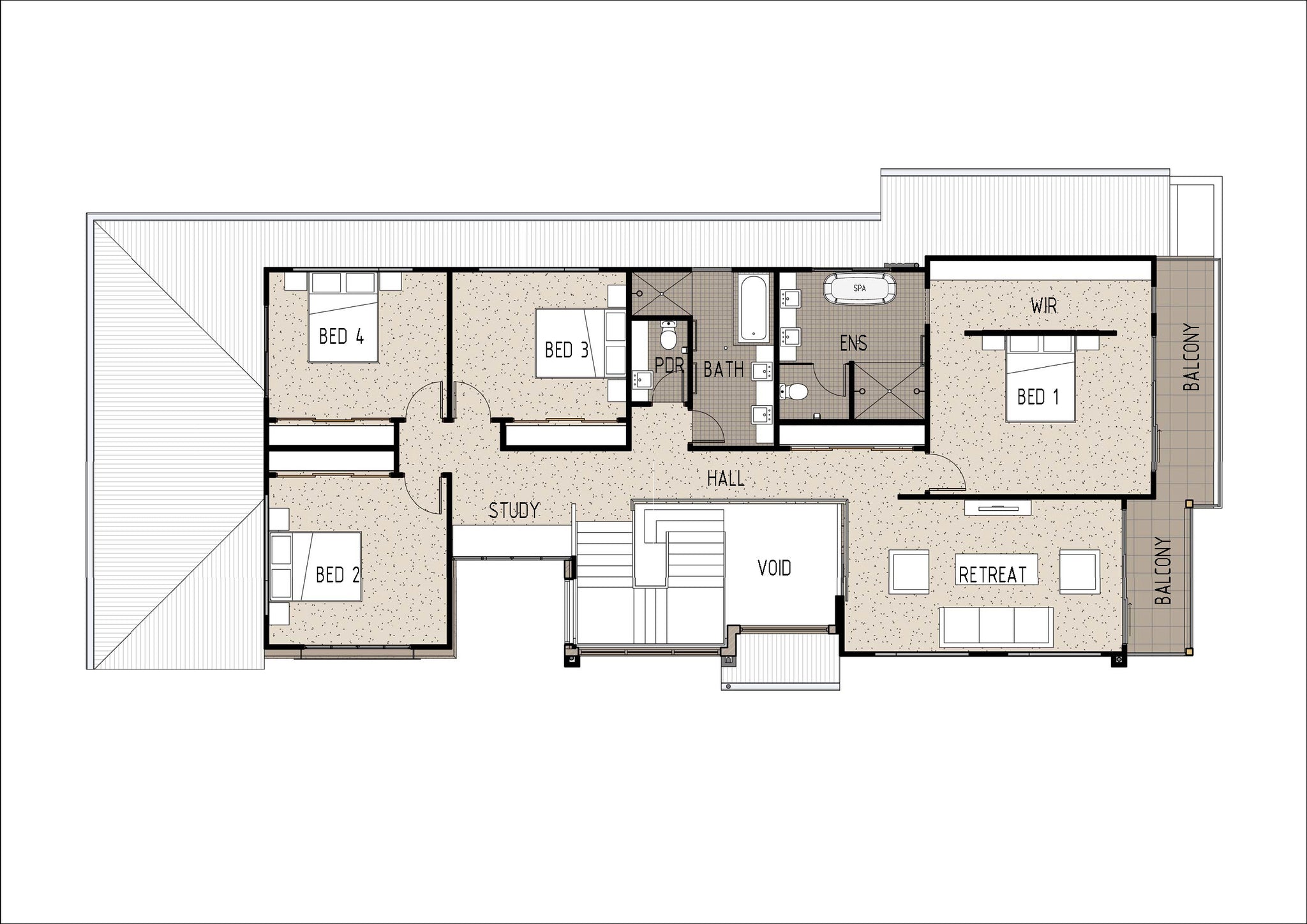

Three bedrooms with built in robes
One bedroom with built in robe and ensuite - perfect for a guest bedroom
Master bedroom featuring walk in robe and ensuite
Retreat/upstairs living room
Front balcony with access from master bedroom and retreat
Downstairs powder room
Outside alfresco with BBQ area
To modify this floor plan please contact us for a FREE QUOTE. Click Here.
All Our Full Working Drawings Sets include the following:
- Floor plans
- Site plan (if we have your site survey)
- Roof plan
- Area legend
- Door and Window schedule
- 3D perspectives (black and white)
Additional services we can offer include*:
- Wet area details
- Construction details
- Shadow diagrams
- Colour floor plans, elevations and perspectives
- Modifications to designs
- Electrical Plan
- Floor finishes plan
- Slab layout plan
*Additional services will be charged at a rate of $132 per hour.
Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.
AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
