M5017

🏠 KEY SPECS

318.7 m²     🛏️ 5 Bedrooms     🛁 3 Bathrooms     🚗 2 Car Garage     ⬆️ 3 Storey

✨ DESCRIPTION

A three-storey evolution of our M4004 design, this 5-bedroom home is ideal for sloping blocks yet easily adaptable for other sites.
It delivers versatile living, integrated entertaining areas, and private retreats — a perfect blend of function, flexibility, and family comfort.

🌿 FEATURES YOU’LL LOVE

• 🏡 Open-plan kitchen, dining & living for effortless connection

• 🍳 Walk-in butler’s pantry adjoining a spacious modern kitchen

• 🛏️ Top-floor master suite with:

  • His & hers walk-in robes

  • Luxury ensuite

  • Full-floor privacy and elevated views

• 🛏️ Four bedrooms with built-in robes

• 💻 Dedicated study for remote work or homework

• 🎬 Separate media room with wet bar for entertaining

• 🛁 Full bathrooms on both ground and first floors

• 🚗 Huge storage room within the garage

• 🧺 Laundry with convenient access

• 🌅 Front balcony to capture light and outlooks

• 🪜 Under-stair storage for smart organisation

• 🏠 Internal granny-flat potential:

  • Ground-floor bedroom, lounge, bathroom + wet bar/kitchenette — ideal for extended family or guests

💡 WHY THIS DESIGN STANDS OUT

✔️ Adapted from the popular M4004 plan for sloping sites
✔️ Three-storey flexibility with family zones on every level
✔️ Optional internal granny flat for multi-generational living
✔️ Abundant storage across all floors
✔️ Designed to maximise space, light and adaptability

🧭 IDEAL FOR

Families looking for:

• A 5-bedroom three-storey home suited to sloping blocks

• A flexible layout with granny-flat potential

• A home with butler’s pantry & media room

• A house plan offering luxury and functionality

Floor Plan
Ground Floor

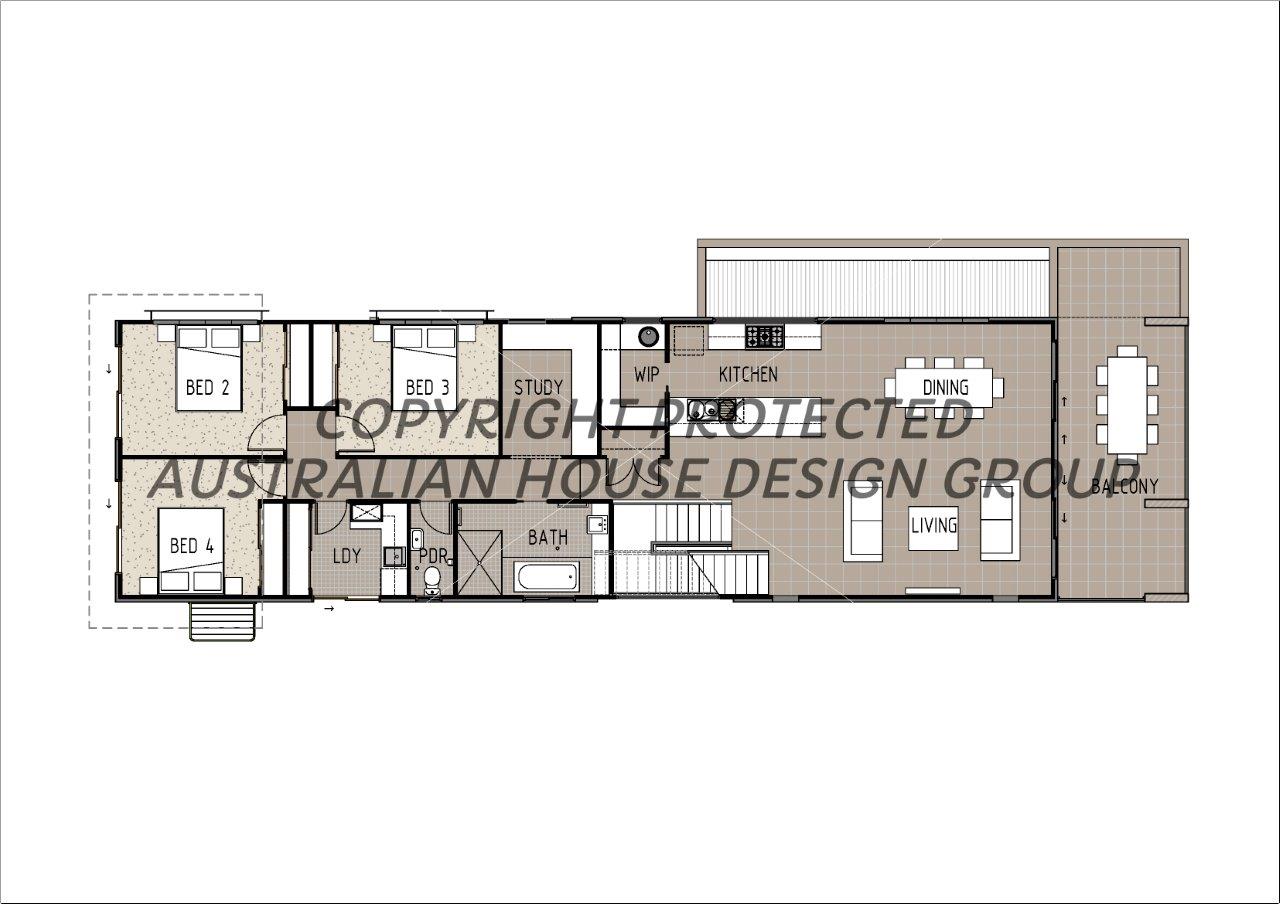

First Floor

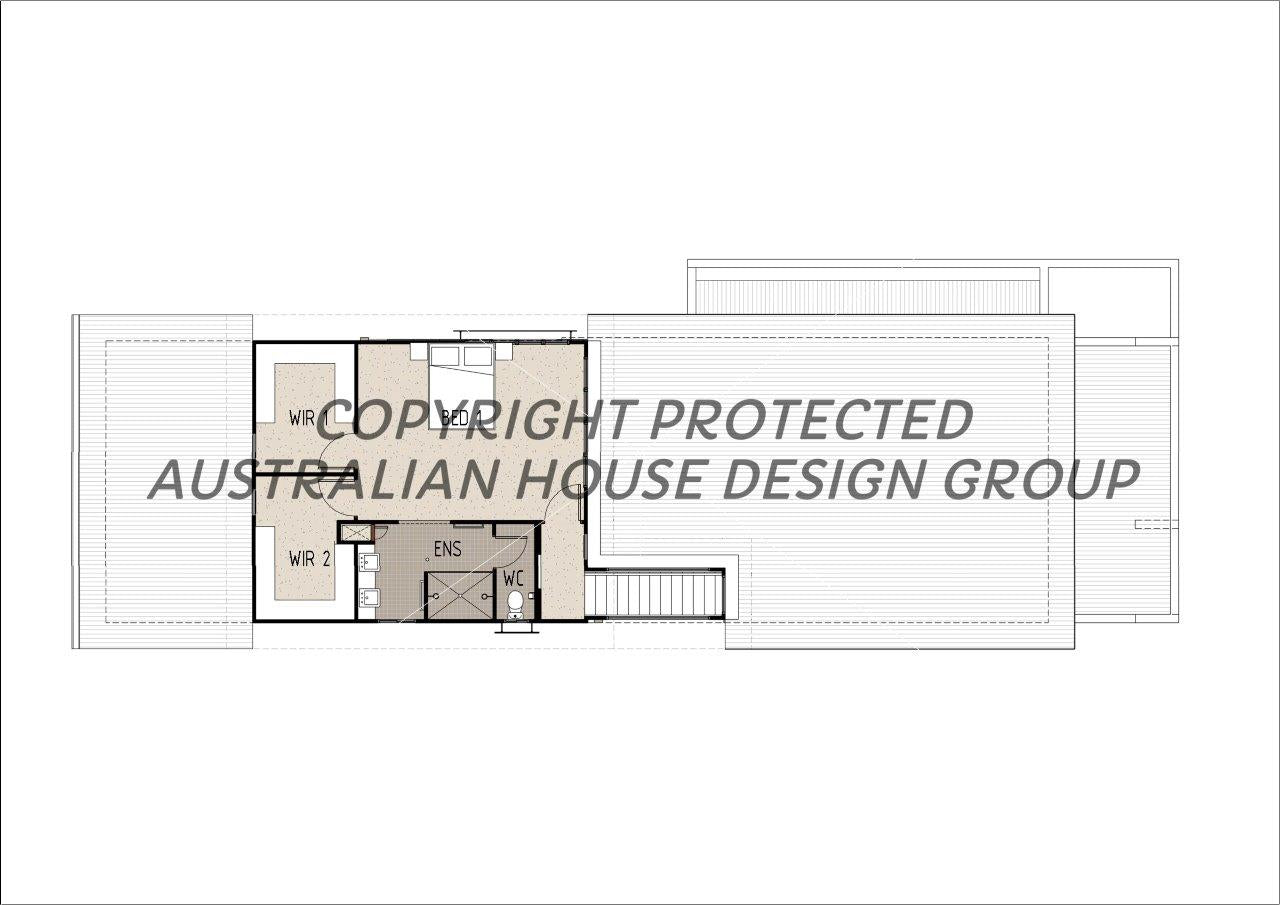

Second Floor

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
