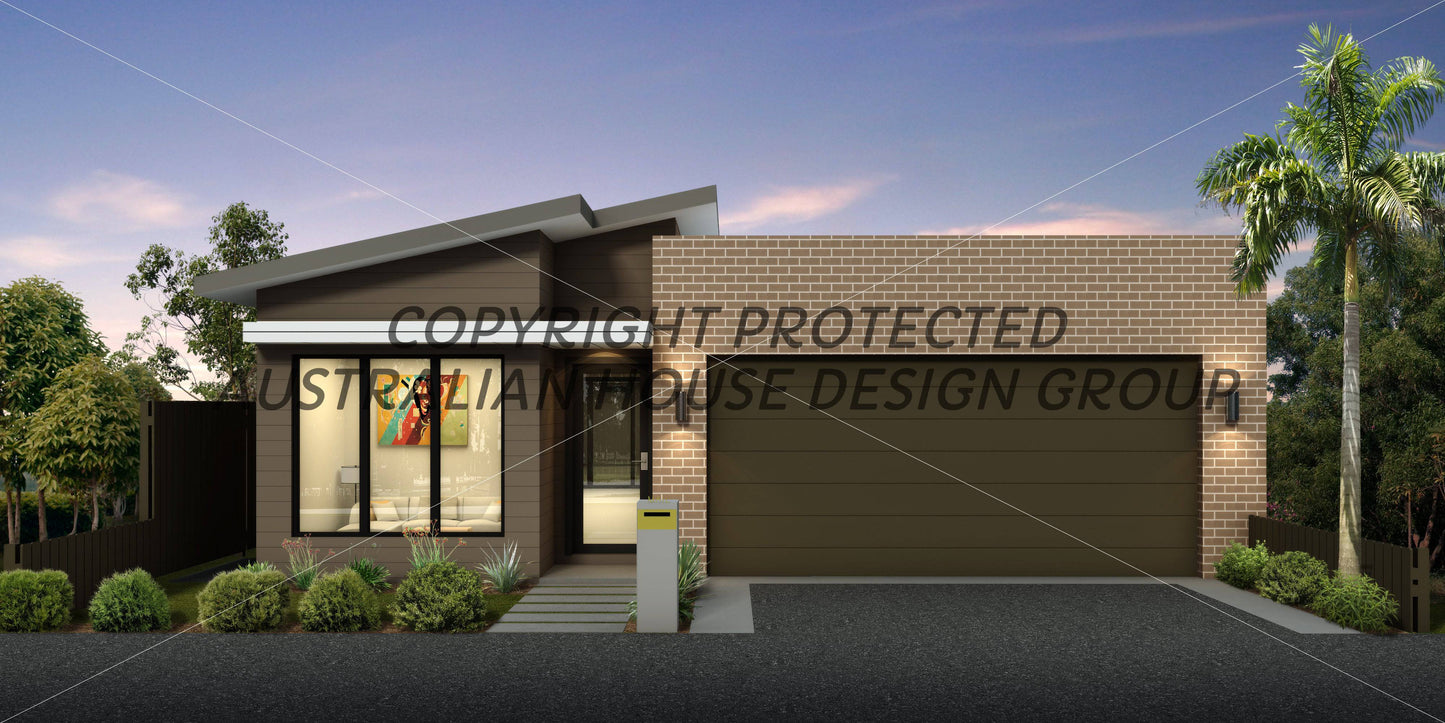

SL3002-AAustralian House Design Group
173m2 3 Bedrooms 2 Bathrooms 2 Car Garage 1 Storey
This three bedroom floor plan design is perfect for narrow lots and for clients seeking a low cost home design.
Galley style open plan kitchen/dining/living
Master bedroom with walk in robe and ensuite
Two bedrooms with built in robes
To modify this floor plan please contact us for a FREE quote. Click Here.
All Our Full Working Drawings Sets include the following:
- Floor plans
- Site plan (if we have your site survey)
- Roof plan
- Area legend
- Door and Window schedule
- 3D perspectives (black and white)
Additional services we can offer include*:
- Wet area details
- Construction details
- Shadow diagrams
- Colour floor plans, elevations and perspectives
- Modifications to designs
- Electrical Plan
- Floor finishes plan
- Slab layout plan
*Additional services will be charged at a rate of $132 per hour.
Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.
AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
