192m2 3 Bedrooms 2.5 Bathrooms 1 Car Garage 2 Storey
This is one of our narrowest house designs and is perfect for extremely small lots.
Large kitchen area with island bench, walk in pantry and plenty of bench space
Semi open plan dining area
Gorgeous sunken lounge room with two and a half storey ceilings
Downstairs powder room

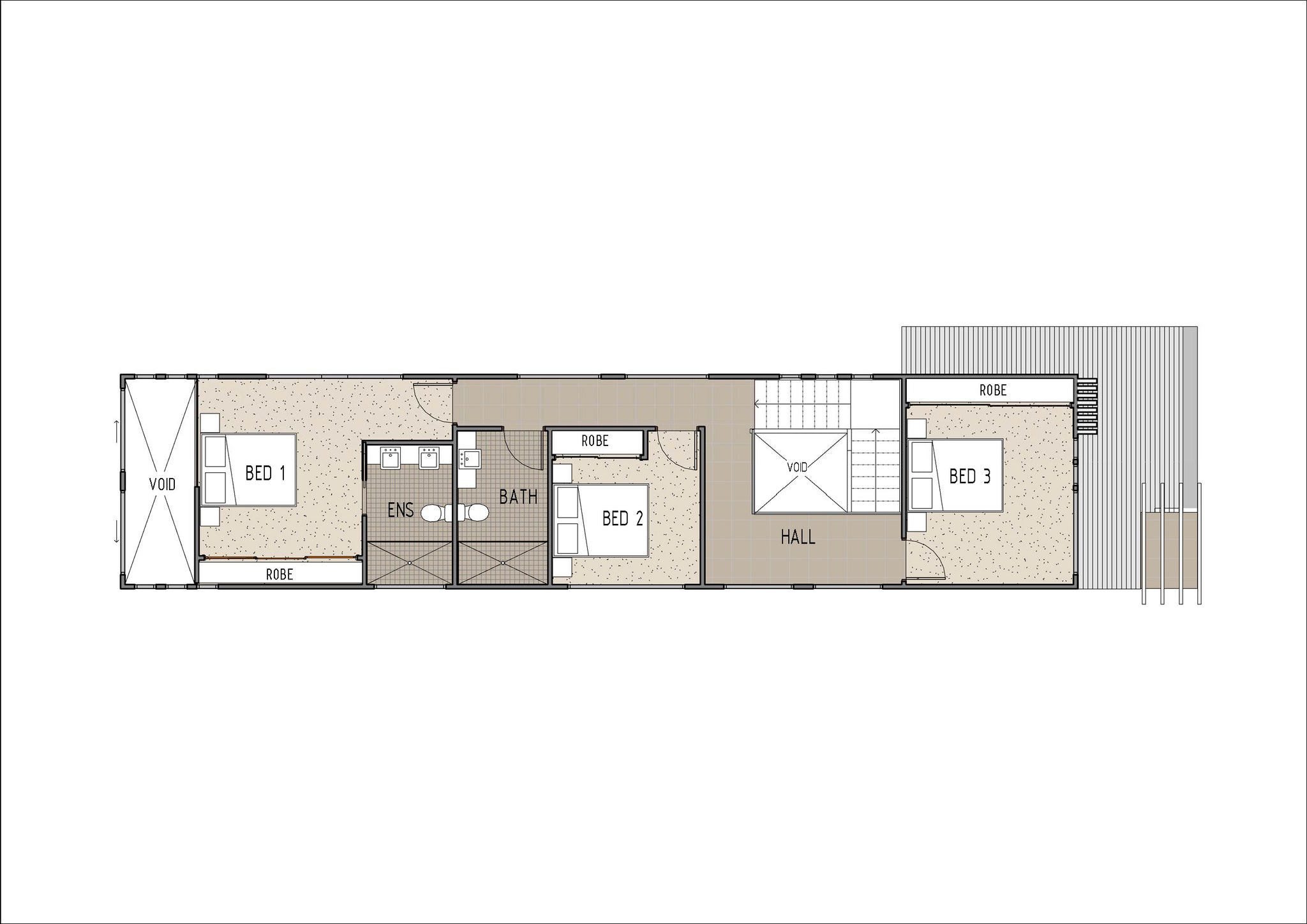

Master bedroom with built in robe and ensuite
Two bedrooms with built in robes
To modify this floor plan please contact us for a FREE quote. Click Here.
All Our Full Working Drawings Sets include the following:
- Floor plans
- Site plan (if we have your site survey)
- Roof plan
- Area legend
- Door and Window schedule
- 3D perspectives (black and white)
Additional services we can offer include*:
- Wet area details
- Construction details
- Shadow diagrams
- Colour floor plans, elevations and perspectives
- Modifications to designs
- Electrical Plan
- Floor finishes plan
- Slab layout plan
*Additional services will be charged at a rate of $132 per hour.
Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.
AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings.
Please contact us if you have any questions
