M5003-A

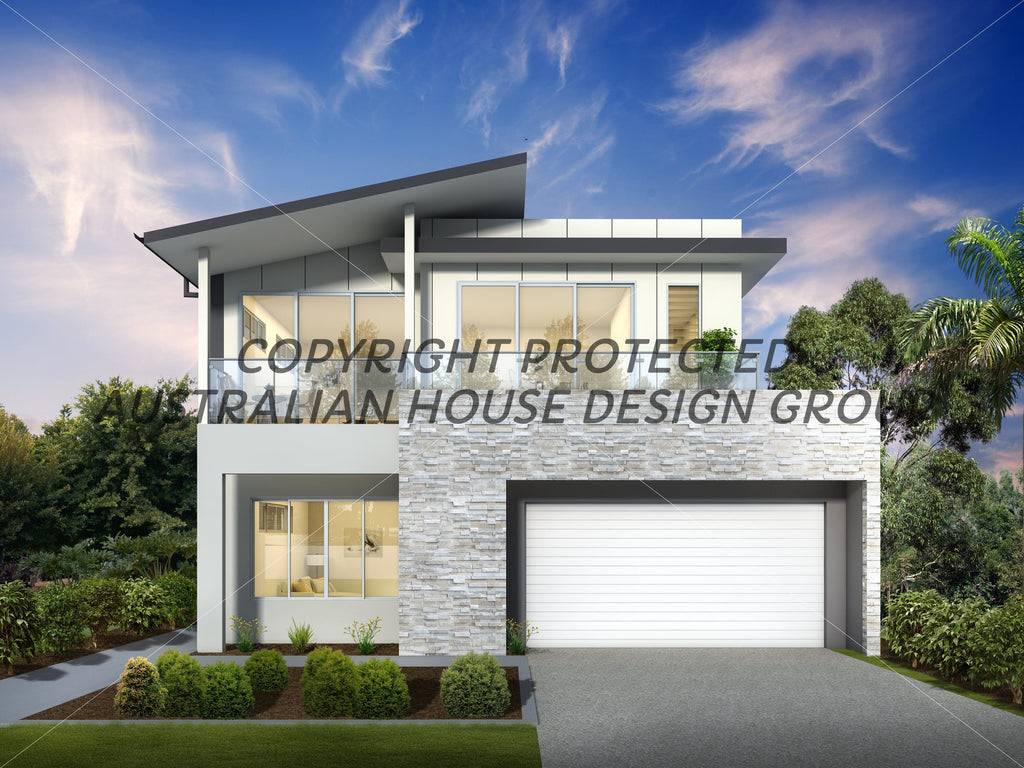

Versatile Two-Storey Family Home

📐 400 m² 🛏️ 5 Bedrooms 🛁 4 Bathrooms 🚗 2 Car Garage 🏠 2 Storey

This large and versatile family home is cleverly designed to suit both small and narrow lots, offering everything a big family could need across two spacious levels. The layout combines functionality with comfort, creating multiple living zones, private retreats, and seamless indoor–outdoor flow.

The ground floor features a generous open-plan kitchen, dining, and living area, designed as the heart of the home. The modern kitchen includes an island bench and a walk-in butler’s pantry, providing both practicality and style. A large media room doubles perfectly as a guest bedroom, complemented by a full bathroom on this level.

Upstairs, you’ll find three well-appointed bedrooms — one with a built-in robe, one with a walk-in robe, and another with a walk-in robe and private ensuite — along with the luxurious master suite featuring a walk-in wardrobe, ensuite, and direct access to the front balcony. A retreat or second living area, study nook, main family bathroom, and walk-in linen complete the upper level, offering flexibility for family life.

Practical touches include a laundry with a second walk-in linen, a storage room in the garage, and two alfresco areas that extend the living spaces outdoors. The design is completed with a pool, creating the ultimate setting for entertaining and family enjoyment.

• Designed for small or narrow lots without sacrificing space

• Open-plan kitchen / dining / living area

• Modern kitchen with island bench and walk-in butler’s pantry

• Large media room or guest bedroom

• Ground-floor bathroom for guests

• Master suite with walk-in robe, ensuite, and balcony access

• Three additional bedrooms (mix of built-in and walk-in robes)

• Upstairs retreat / second living room + study nook

• Main family bathroom and walk-in linen upstairs

• Laundry with additional linen storage

• Two outdoor alfresco areas + pool

• Garage with dedicated storage room

Families seeking a spacious and flexible two-storey home that maximises every square metre. Perfect for narrow or small blocks, this design provides modern comfort, private retreats, and multiple entertaining zones to suit busy family lifestyles.

Floor Plan
Ground Floor

First Floor

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
