RA5003-A

Total Area: 248 m²   |   5 Bedrooms 🛏️   |   5.5 Bathrooms 🛁   |   2 Car Garage 🚗   |   Single Storey 🏡

This 5-bedroom Rooming Accommodation design is a compliant, high-yield housing solution tailored for NDIS, student, or shared-living projects.
Designed to meet all Rooming Accommodation Code and Class 1B certification standards, it provides private and independent living for each resident while maintaining shared, well-appointed communal spaces.

Every bedroom includes its own ensuite, built-in desk, and bar fridge station, while the central living zone offers open, light-filled shared spaces ideal for daily use and social connection.

Each of the five bedrooms includes:

• 🧺 Built-in wardrobe

• 💻 Study desk

• 🍶 Bench space for bar fridge or kitchenette setup

• 🚿 Private ensuite bathroom

• ♿ Bedroom 1 includes an AS1428.1-approved PWD bathroom

• 🍳 Open-plan kitchen, dining, and living area promoting easy communal living

• 🚻 Guest powder room for visitors

• 🌿 Outdoor alfresco area for relaxation or entertaining

• 🧺 Separate shared laundry

• 🚗 Double car garage with individual lockable storage cupboards for each resident

This design complies fully with the Rooming Accommodation accessibility and safety standards and can be certified as a Class 1B building for Building Approval.
All spaces, fittings, and circulation zones are designed in accordance with AS1428.1 accessibility requirements, ensuring seamless certification and compliance.

✅ Developers targeting shared-living or NDIS-compliant accommodation
✅ Investors seeking high-yield, low-maintenance rental properties
✅ Builders needing Class 1B-compliant plans
✅ Medium-density or suburban sites suited to multi-tenant layouts

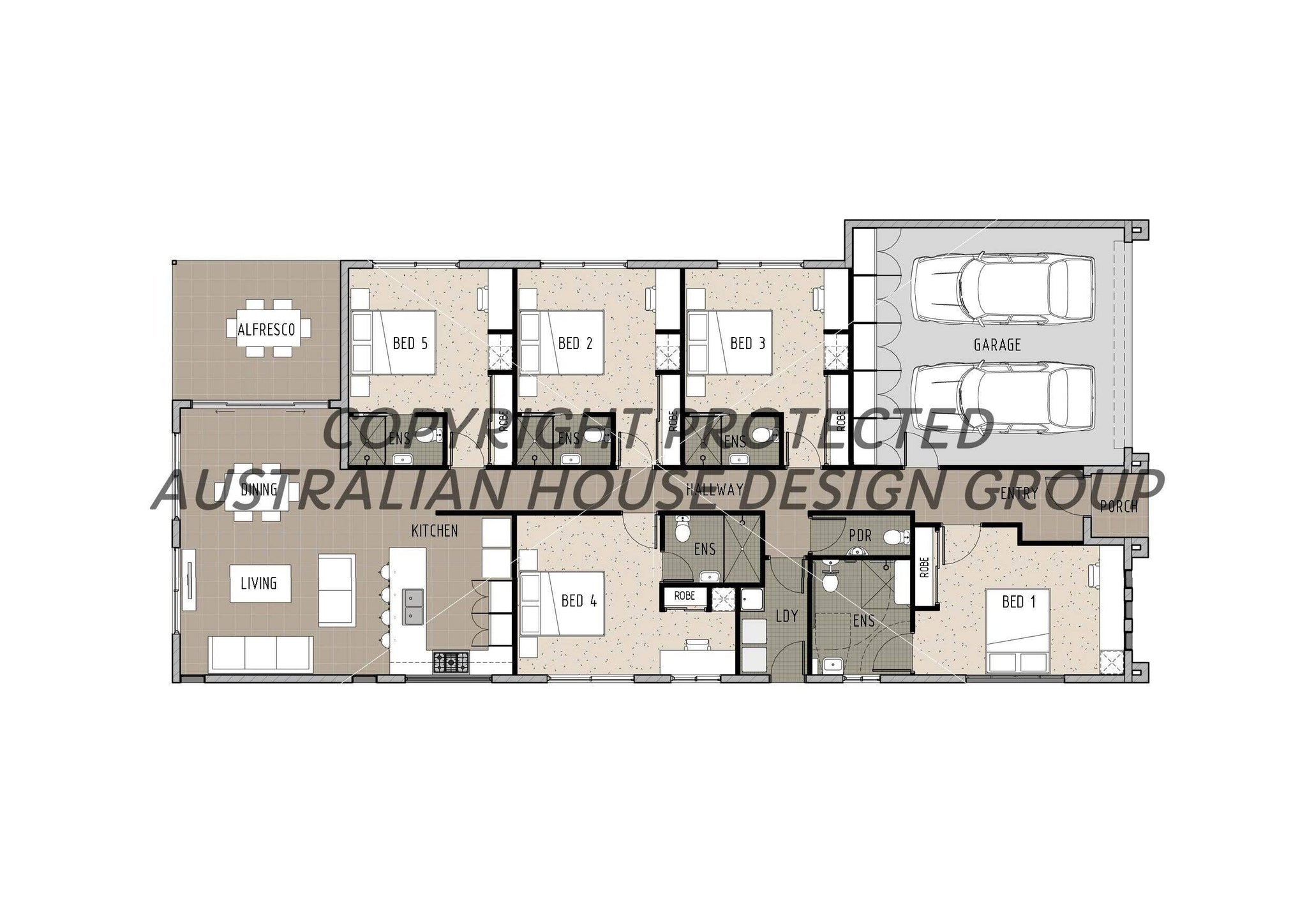

Floor Plan

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
