UD4001

Total GFA: 682.6 m²   |   4 × 3-Bedroom Townhouses 🏠
Minimum Site Size: 600 m² (29.8 m L × 20.12 m W) 📐

This four-unit townhouse development is a premium medium-density project ideal for investors, developers, and builders seeking a high-yield layout that fits comfortably on a 600 m² site.
Each townhouse spans three levels, offering open-plan living, private outdoor spaces, and secure double-car garaging — making this project a well-balanced mix of functionality and market appeal.

All four townhouses share similar layouts, with subtle design variations that provide individuality while maintaining build efficiency and cost effectiveness.

• 🏗️ Three-storey design

• 🚗 Ground floor: Double garage, European laundry, powder room, and private courtyard

• 🍽️ First floor: Open-plan kitchen / dining / living with galley-style kitchen and island bench; alfresco area off living

• 🛏️ Second floor: Three bedrooms (Bedrooms 2 & 3 with built-ins, Bedroom 3 with private balcony)

• 👑 Master bedroom with walk-in robe and private ensuite

• 🛁 Main bathroom separating Bedrooms 2 & 3

• 🏗️ Three-storey design

• 🚗 Ground floor: Double garage, full-size laundry, powder room, and private courtyard

• 🍽️ First floor: Open-plan galley kitchen with island bench, dining and living areas, open study, and alfresco

• 🛏️ Second floor: Three bedrooms (Bedrooms 2 & 3 with built-ins, Bedroom 3 with balcony)

• 👑 Master bedroom with walk-in robe and private ensuite

• 🛁 Main bathroom between Bedrooms 2 & 3

• 🏗️ Three-storey design

• 🚗 Ground floor: Double garage, European laundry, full-size bathroom, and rear storage area

• 🌿 Private courtyard

• 🍽️ First floor: Open-plan kitchen / dining / living with galley-style kitchen and island bench; outdoor alfresco

• 🛏️ Second floor: Three bedrooms (Bedrooms 2 & 3 with built-ins)

• 👑 Master bedroom with walk-in robe and ensuite

• 🛁 Main bathroom between Bedrooms 2 & 3

• 💻 Small study nook at top of stairs

• 🏗️ Three-storey design

• 🚗 Ground floor: Double garage, European laundry, full-size bathroom, and private courtyard

• 🍽️ First floor: Open-plan kitchen / dining / living with galley-style kitchen, island bench, and outdoor alfresco

• 🛏️ Second floor: Three bedrooms (Bedrooms 2 & 3 with built-ins)

• 👑 Master bedroom with walk-in robe and ensuite

• 🛁 Main bathroom between Bedrooms 2 & 3

• 💻 Small study nook at top of stairs

✅ Developers seeking compact, high-yield townhouse projects
✅ Builders needing construction-efficient plans
✅ Investors targeting strong rental or resale demand
✅ Urban infill sites and medium-density zones

Floor Plan

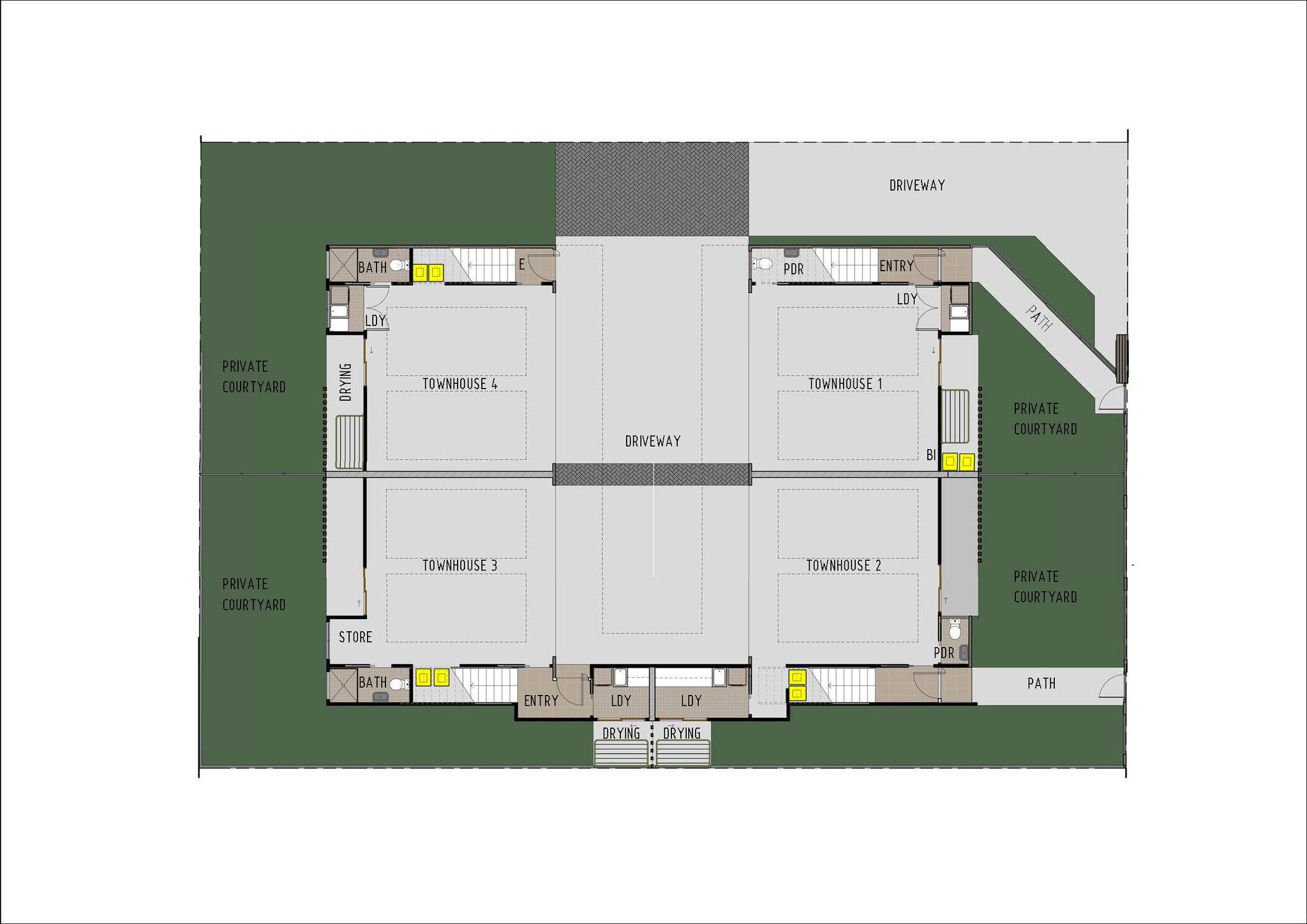

Ground Floor

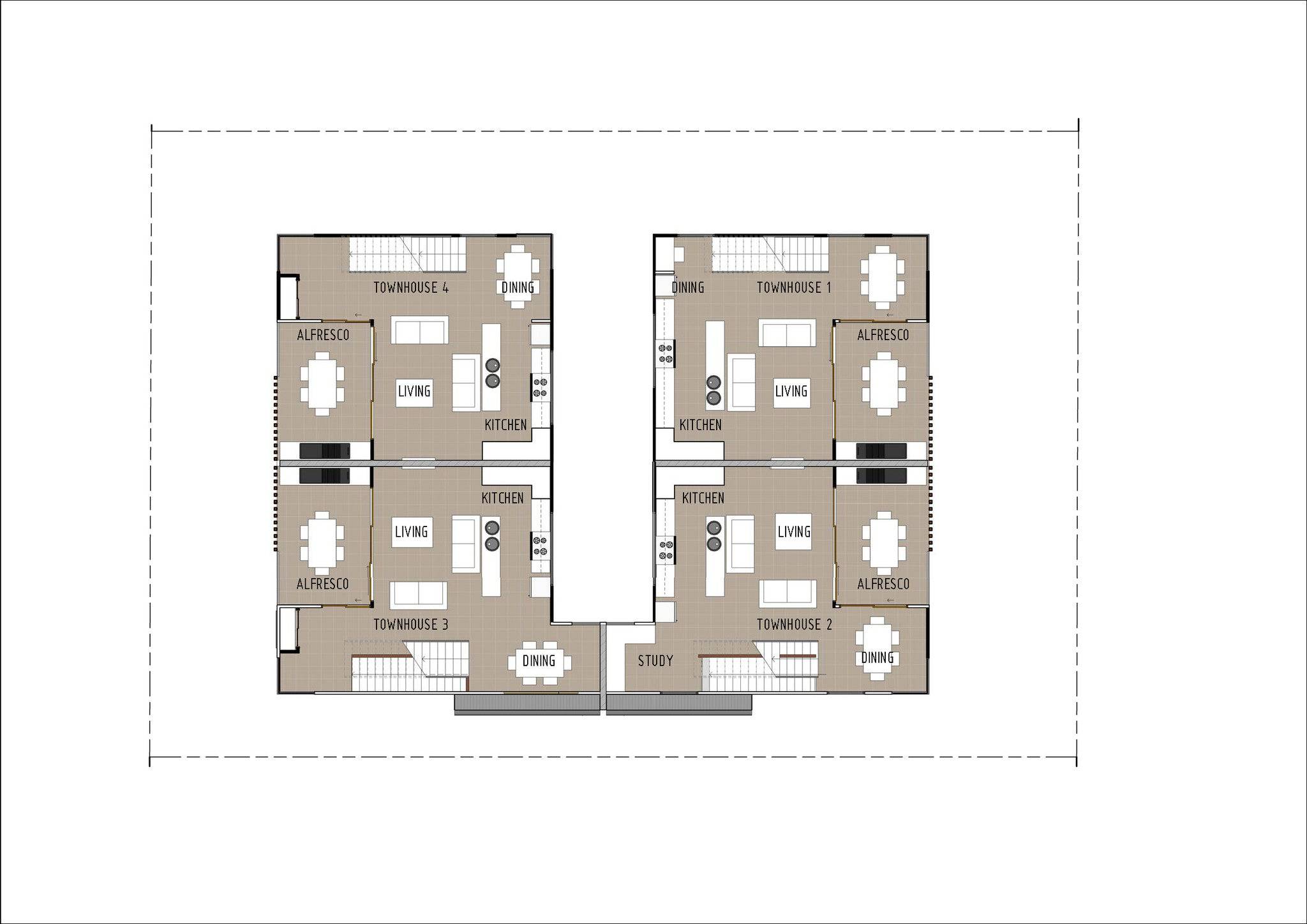

 First Floor

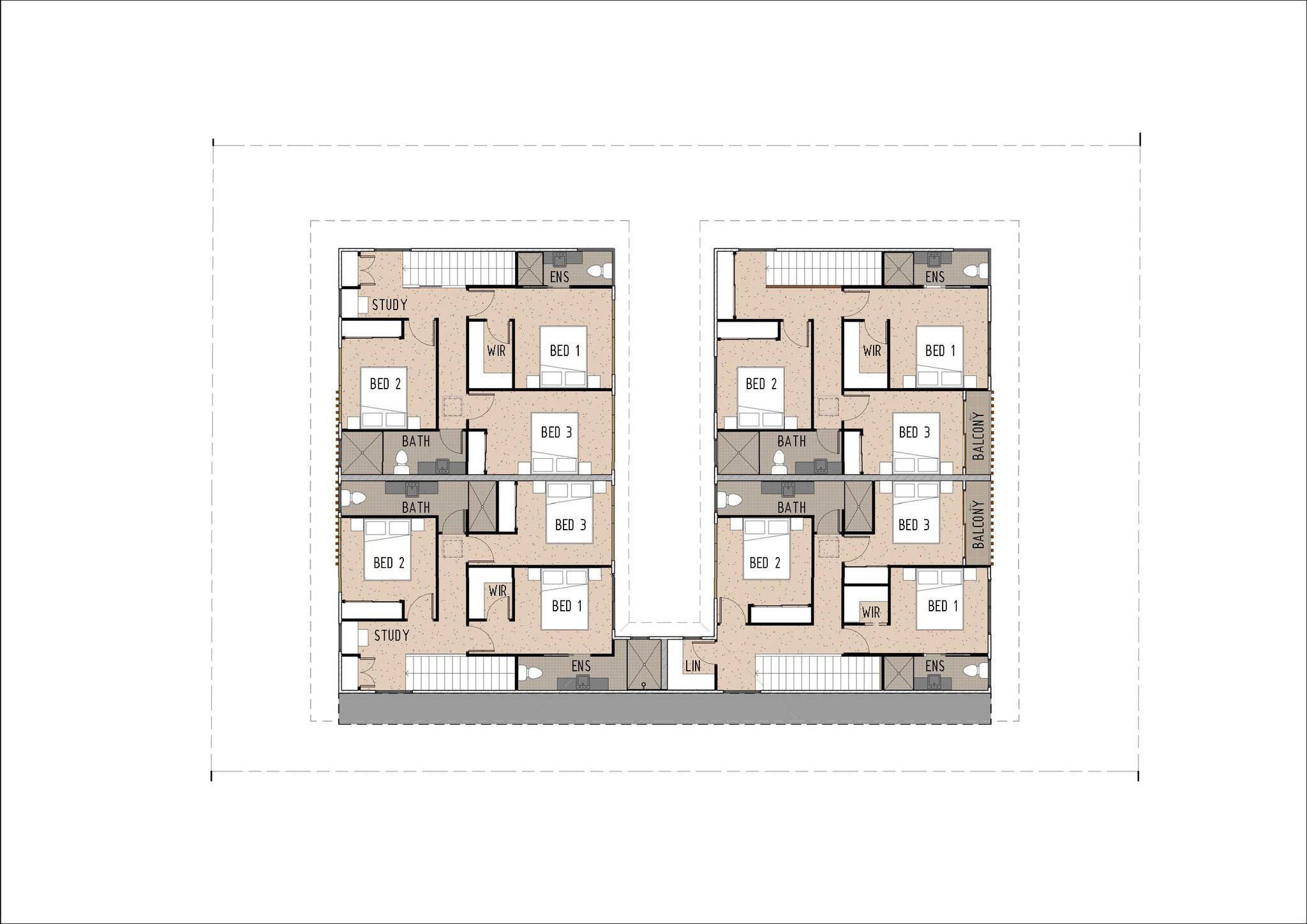

Second Floor
